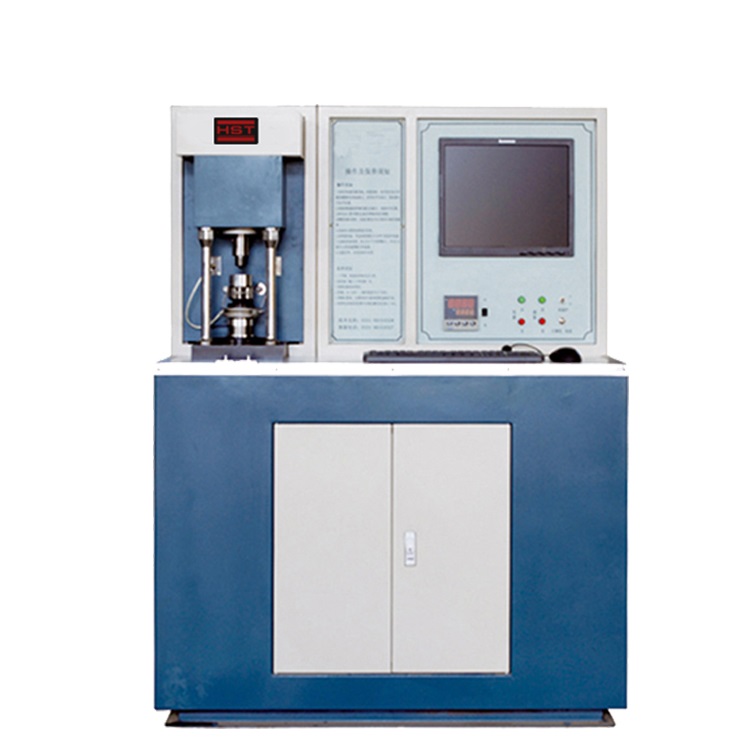

MRS10D Computer Control Servo Four Ball Friction Testing Machine

Test force range (stepless adjustable)

60N~10kN

Relative error of test force indication value

±1%

Friction test range

0~300N

Friction test error

±3%

This machine mainly uses the form of sliding friction to evaluate the bearing capacity of lubricant under extremely high point contact pressure conditions. There are three indexes including maximum non-clamping load PB, sintering load PD and comprehensive wear value ZMZ.

Request a Quote Download

Home >> Products >> Friction and wear testing machine

MRS10D Computer Control Servo Four Ball Friction Testing Machine

Request a Quote

Product Details

1.Application

This machine mainly uses the form of sliding friction to evaluate the bearing capacity of lubricant under extremely high point contact pressure conditions. There are three indexes including maximum non-clamping load PB, sintering load PD and comprehensive wear value ZMZ. The machine can also do lubricant long - time wear resistance test, measurement of friction coefficient, record friction and temperature curve.

2. Standard

GB/T12583-98 Lubricants -- Determination of extreme pressure properties (four-ball machine method)

GB3142-82 Lubricants -- Determination of bearing capacity (four-ball method)

SH/T0189-92 Lubricating oil -- Determination of anti-wear properties (four-ball machine method)

SH/T0202-92 Test method for extreme pressure performance of greases (four-ball machine method)

SH/T0204-92 Test method for wear resistance of greases (four-ball machine method)

Product parameters

Item	Name	Technical parameters
1	Test force range (stepless adjustable)	60N~10kN
2	Relative error of test force indication value	±1%
3	Friction test range	0~300N
4	Friction test error	±3%
5	Spindle speed range (stepless adjustable)	200~2000r/min
6	Spindle speed error	±5 r/min
7	Friction pair temperature control range	RT~75^○C
8	Friction pair temperature control error	±2^○C
9	Test time control range	1s~999h
10	Spindle speed control range	1~99999999
11	Test steel balls	φ12.7mm
12	Overall dimension	12008701700 （mm）
13	weight	600kg
