HST MMW-1 Vertical Computer Control Universal Friction And Wear Testing Machine

Axial Test Force Working Range

10N~1000N (Stepless)

Relative Error Of Load Indicating Value

±1 %

Discriminability Of Test Force Indicated Value

±1.5 N

Test Force Automatic Loading Rate

400 N/min

The machine can simulate rolling, sliding and rolling & sliding combined movement under the certain contact pressure to complete point, line and plane simulating tests. It can be used to evaluate the friction and wear performance of lubricant, metal, plastics, coating, rubber, ceramics etc.

Request a Quote Download

Home >> Products >> Friction and wear testing machine

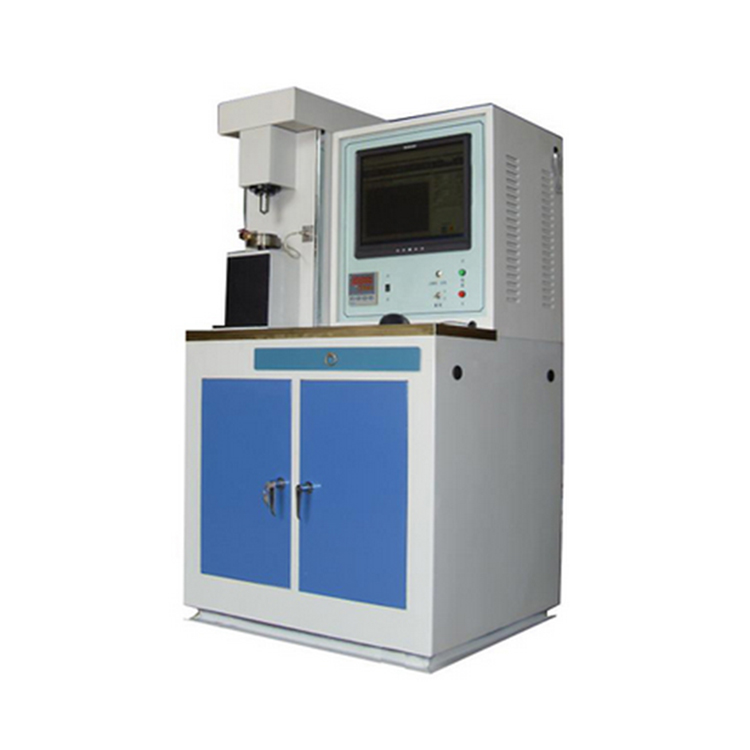

HST MMW-1 Vertical Computer Control Universal Friction And Wear Testing Machine

Request a Quote

Product Details

1. Application:

The machine can simulate rolling, sliding and rolling & sliding combined movement under the certain contact pressure to complete point, line and plane simulating tests. It can be used to evaluate the friction and wear performance of lubricant, metal, plastics, coating, rubber, ceramics etc. It can not only content with the needs of traditional petrochemical industry to research, develop and inspect the various kinds of intermediate & high grade hydraulic oil, combustion engine oil and gear oil. Also it can be tested under dry condition, but also the needs of simulating evaluation to new material development and new technology research.
2.Conformed Standards:
ASTM D-2266, D-3702, D-4172.

Product parameters

NO.	Item	Specification
1.1	Axial Test Force Working Range	10N~1000N (Stepless)
1.2	Relative Error Of Load Indicating Value	±1 %
1.3	Discriminability Of Test Force Indicated Value	±1.5 N
1.4	Test Force Automatic Loading Rate	400 N/min
1.5	Relative Error Of Test Force Automatic Hold Indicated Value In A Long Time	±1 %
2.Friction Moment
2.1	Max. Testing Friction Moment	2.5 N.m
2.2	Relative Error Of Friction Moment Indicating Value	±2 %
2.3	Friction Force Weighing Transducer	50 N
2.4	Friction Force Arm Distance	50 mm
