Skid resistance and friction tester

Skid resistance and friction tester

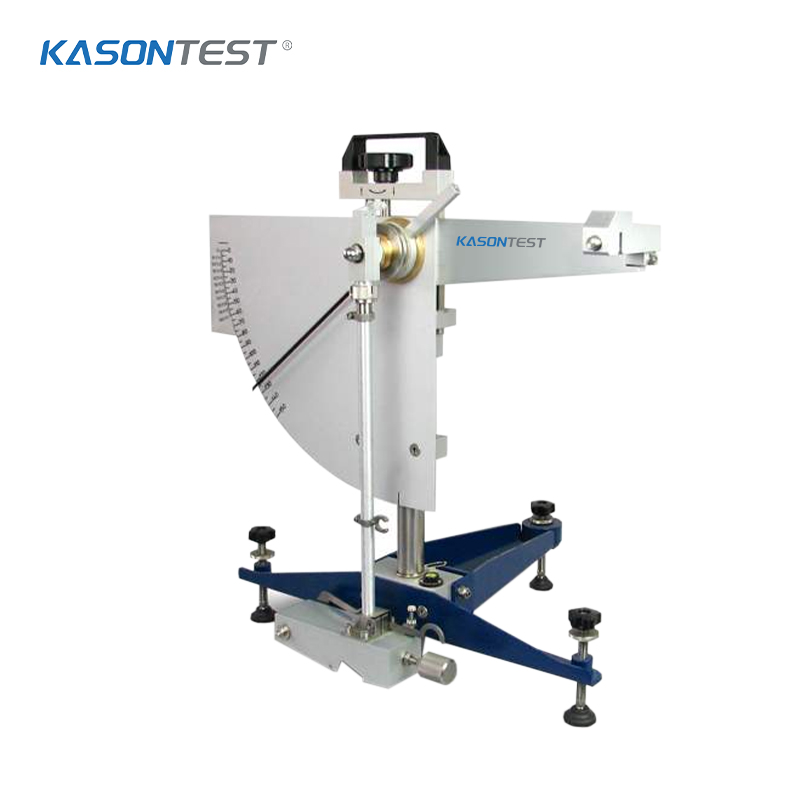

The pendulum skid tester measures the frictional resistance between a rubber slider mounted on the end of a pendulum arm and the test surface. this provides highway engineers with a routine method of checking the resistance of wet and dry surfaces to slipping and skidding, both in the lab and on site

Request a Quote

Product Details

STANDARD:

BS EN 1097-8, NZS 4586, BS 6077 Pt1, BS 7044 ,  ASTM E303

the pendulum skid tester measures the frictional resistance between a rubber slider mounted on the end of a pendulum arm and the test surface. this provides highway engineers with a routine method of checking the resistance of wet and dry surfaces to slipping and skidding, both in the lab and on site



Applications:
-Road surface testing
-Testing of new road surface materials under development
-Testing of aggregates in the PSV (polished stone value) test
-Testing of floors and pedestrian walkways
-Flooring materials product development
-Accident investigations, both traffic and pedestrian
-Litigation investigations



Product parameters

Specifications:

Rocker weight

1500±30g

Distance between rocking centre and center of gravity

410±5mm

Positive static pressure on pavement

22.2±0.5kN

weight of rubber slider

16g

Overall weight approx

30-40Kg

package

aluminum carrying case

Dimension of package (mm)

740 × 710 × 210
