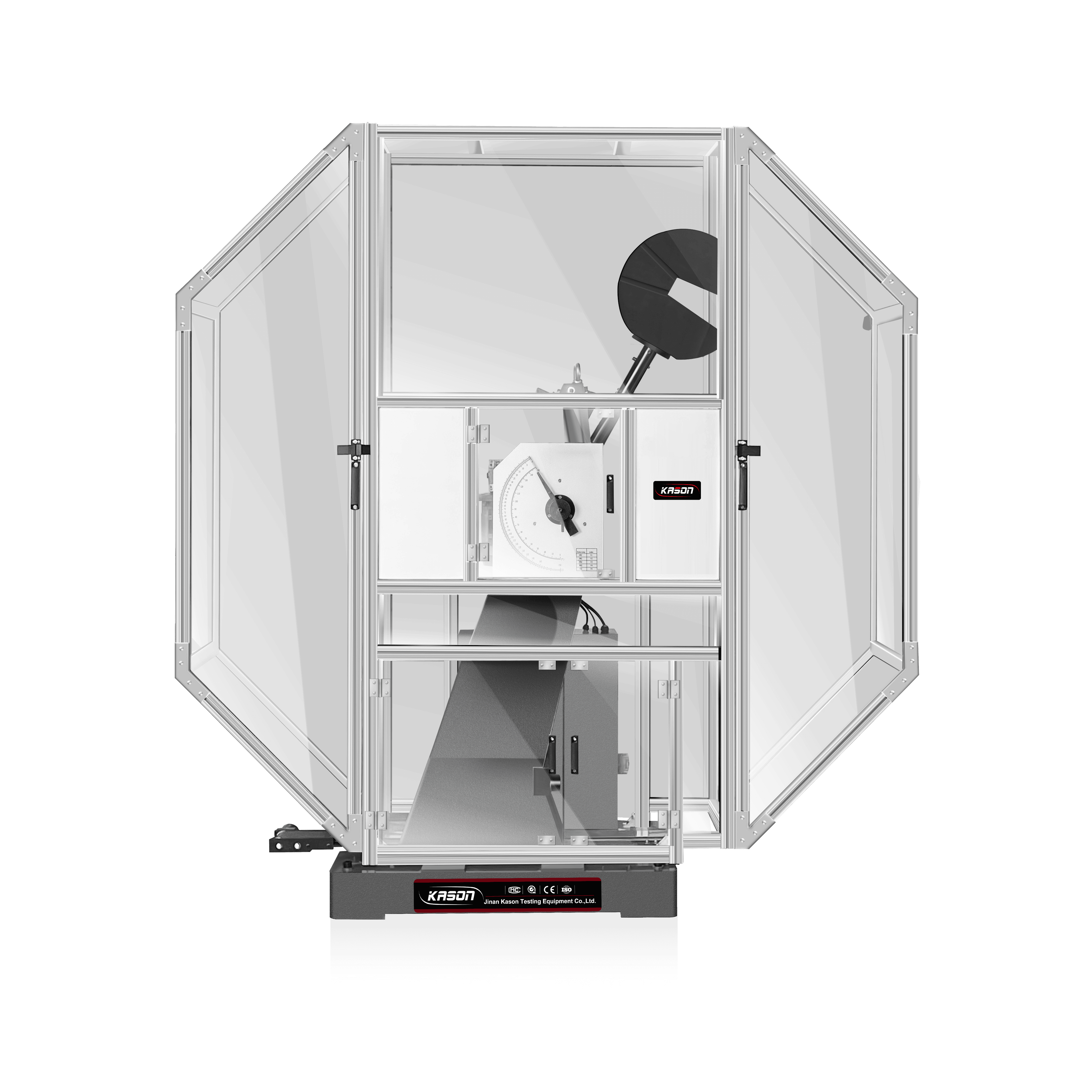

JBS-300C Touch screen pendulum impact testing machine
-
Max.impact energy
300J
-
Optional pendulum
150J
-
Pendulum moment 150J
80.3848 Nm
-
Pendulum moment 300J
150.7695 Nm
This machine is used for measuring the Charpy impact resistance of metal and other materials.
JBS-300C Touch screen pendulum impact testing machine
This machine is used for measuring the Charpy impact resistance of metal and other materials.
-
Max.impact energy:300J；
-
Optional pendulum:150J；
-
Pendulum moment 150J:80.3848 Nm；
-
Pendulum moment 300J:150.7695 Nm；
-
The distance between the pendulum shaft and impact point:750mm；
Product Details
Application
This machine is used for measuring the Charpy impact resistance of metal and other materials.
Product parameters
|
Max.impact energy 300J |
Optional pendulum 150J |
Pendulum moment 150J 80.3848 Nm |
|
Pendulum moment 300J 150.7695 Nm |
The distance between the pendulum shaft and impact point 750mm |
Support span 40+0.2mm |
|
Impact speed 5.24 m/s |
Angle resolution 0.025° |
Striking angle 150°+1 |
|
Radius of support curvature R1~1.5mm |
Angle of support taper 11+1° |
Striking thickness 16 mm |
|
Weight 1000KG |
Power supply 3 phase,AC380V+10%.50Hz |
