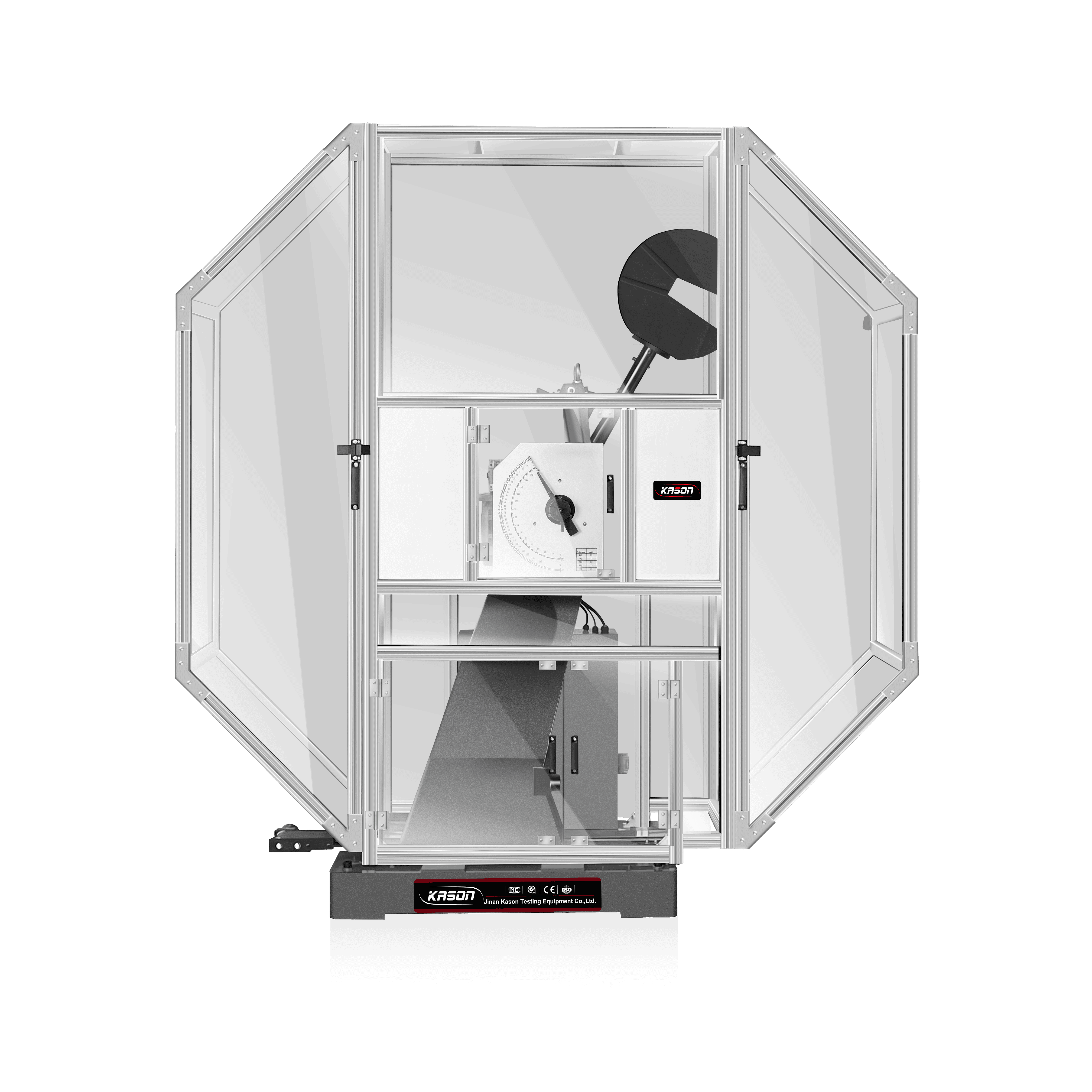

JB-300C Semi-automatic impact machine

Maximum impact energy

300J

Optional simple beam pendulum

150,300J

Pendulum prelift Angle

150°

Distance from the axis of the pendulum to the center ofimpact

750mm

It is suitable for laboratory, metallurgyindustry, machinery production, steel plant and other fields.

Get a Quote

Learn more

JB-300C Semi-automatic impact machine

It is suitable for laboratory, metallurgyindustry, machinery production, steel plant and other fields.

Maximum impact energy:300J；

Optional simple beam pendulum:150,300J；

Pendulum prelift Angle:150°；

Distance from the axis of the pendulum to the center ofimpact:750mm；

Impact velocity:5.24m/s；

Get a Quote

Product Details

Application

Pendulum Charpy Impact Testing Machine is used to determine the impact toughness of metal materialsunder dynamic load according to ISO148, ASTM E23 and EN 10045. It is suitable for laboratory, metallurgyindustry, machinery production, steel plant and other fields.

Product parameters

Maximum impact energy 300J	Optional simple beam pendulum 150,300J	Pendulum prelift Angle 150°
Distance from the axis of the pendulum to the center ofimpact 750mm	Impact velocity 5.24m/s	Anvil span 40mm
Anvil corner radius R1-1.5mm	Impact blade width 10-18mm	Impact knife thickness 16 mm
Weight 1500kg	Power Three-phase,five-wire system,380V±10%，50Hz
