JBW-300XJ Computer control charpy and izod impact testing machine
-
Max. impact energy Charpy test
150J,300J
-
Max. impact energy Izod Test
150J
-
Impact speed Charpy test
5.2m/s
-
Impact speed lzod Test
4.4m/s

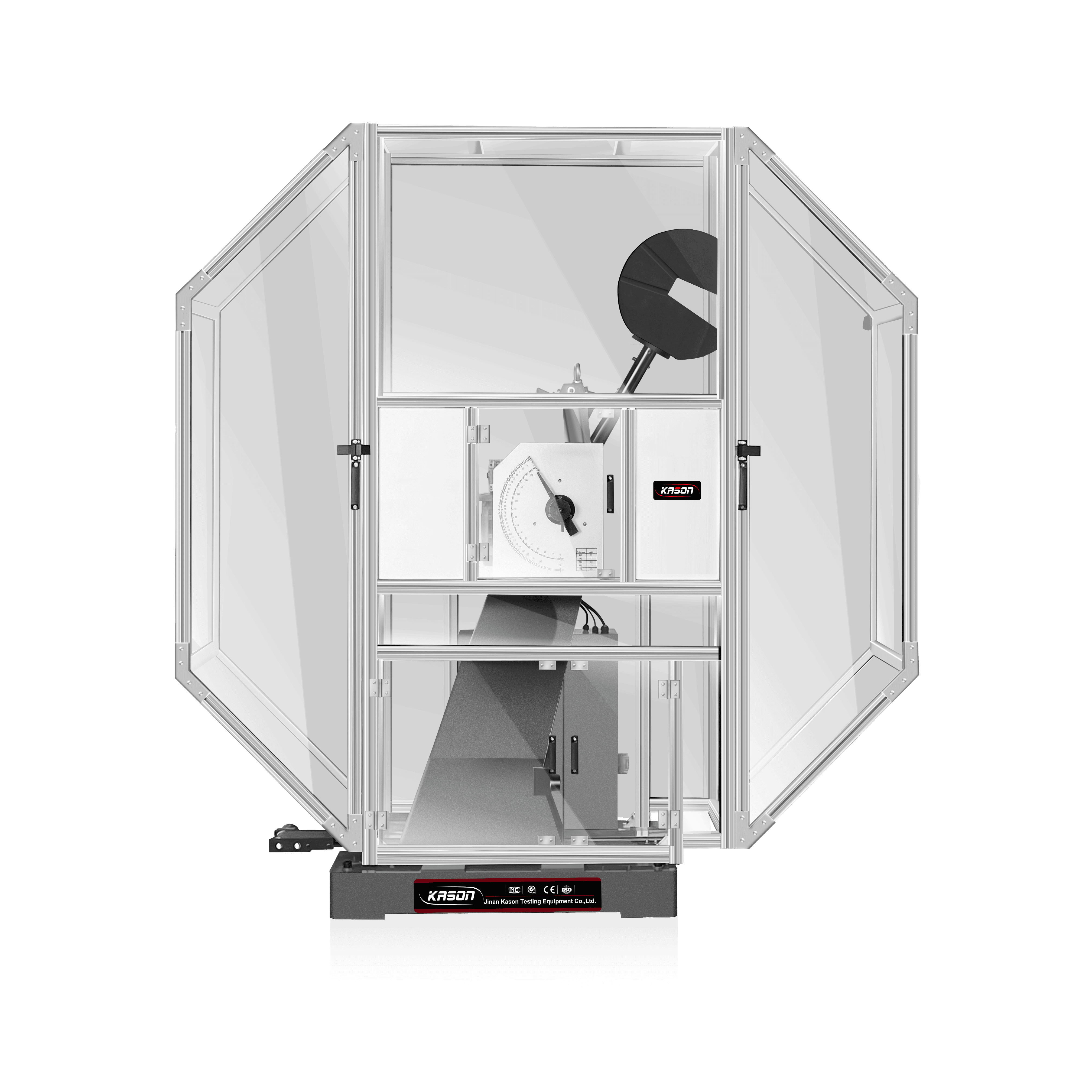

Model PIT302JX Computer Screen Display Charpy and Izod Pendulum Impact Tester is high performance pendulum impact tester that precisely determines absorbed impact energy and resistance to breakage of metallic specimens.
JBW-300XJ Computer control charpy and izod impact testing machine
Model PIT302JX Computer Screen Display Charpy and Izod Pendulum Impact Tester is high performance pendulum impact tester that precisely determines absorbed impact energy and resistance to breakage of metallic specimens.
-
Max. impact energy Charpy test:150J,300J；
-
Max. impact energy Izod Test:150J；
-
Impact speed Charpy test:5.2m/s；
-
Impact speed lzod Test:4.4m/s；
-
Standard span:40+0.2mm；
Product Details
Model PIT302JX Computer Screen Display Charpy and Izod Pendulum Impact Tester is high performance pendulum impact tester that precisely determines absorbed impact energy and resistance to breakage of metallic specimens. With the computer display, it can show test result and test curve in real time easily.
Product parameters
|
Max. impact energy Charpy test 150J,300J |
Max. impact energy Izod Test 150J |
Impact speed Charpy test 5.2m/s |
|
Impact speed lzod Test 4.4m/s |
Standard span 40+0.2mm |
Raised angle 150° |
|
Round angle of the jaw R1-1.5mm |
Round angle of impact edge R2mm |
Angle accuracy 0.1° |
|
Weight 550kg |
Power supply 3phs,380V1220V+10% |
|
