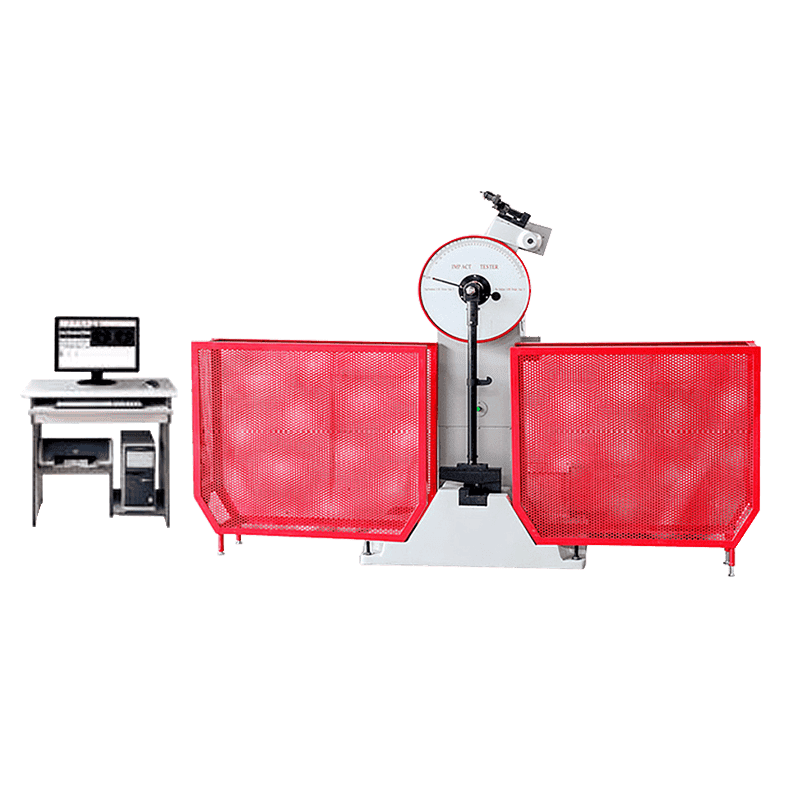

JBW-500B 500J Computer Control Impact Testing Machine

Max.impact energy

250J,500J

Dial scale range and dividing value

0-500J(5J),0-250J(2.5J)

Pendulum moment 500J

267.9492N.m

Pendulum moment 250J

133 .9746N.m

PIT502W Computer Control Semi-automatic Charpy Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load.

Get a Quote

Learn more

JBW-500B 500J Computer Control Impact Testing Machine

JBW-500B 500J Computer Control Impact Testing Machine

PIT502W Computer Control Semi-automatic Charpy Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load.

Max.impact energy:250J,500J；

Dial scale range and dividing value:0-500J(5J),0-250J(2.5J)；

Pendulum moment 500J:267.9492N.m；

Pendulum moment 250J:133 .9746N.m；

Standard span:40+0.2mm；

Get a Quote

Product Details

Application

PIT502W Computer Control Semi-automatic Charpy Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load.

Carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum cycle by means of setting up with computer program,and the results can be monitored, stored and printed out. Control box or computer program control is alternative operating method.

Product parameters

Max.impact energy 250J,500J	Dial scale range and dividing value 0-500J(5J),0-250J(2.5J)	Pendulum moment 500J 267.9492N.m
Pendulum moment 250J 133 .9746N.m	Standard span 40+0.2mm	The distance between the pendulum shaft and impact point 800mm
Impact speed 5.4 m/s	Raised angle 150°	Round angle of the jaw R1-1.5mm
Round angle of impact edge R2-2.5mm,R8+0.05mm	Thickness of lmpact Blade 16 mm	Angle accuracy 0.1°
Weight 650Kg	Power supply 3 phases 4 lines, 50Hz.380V
