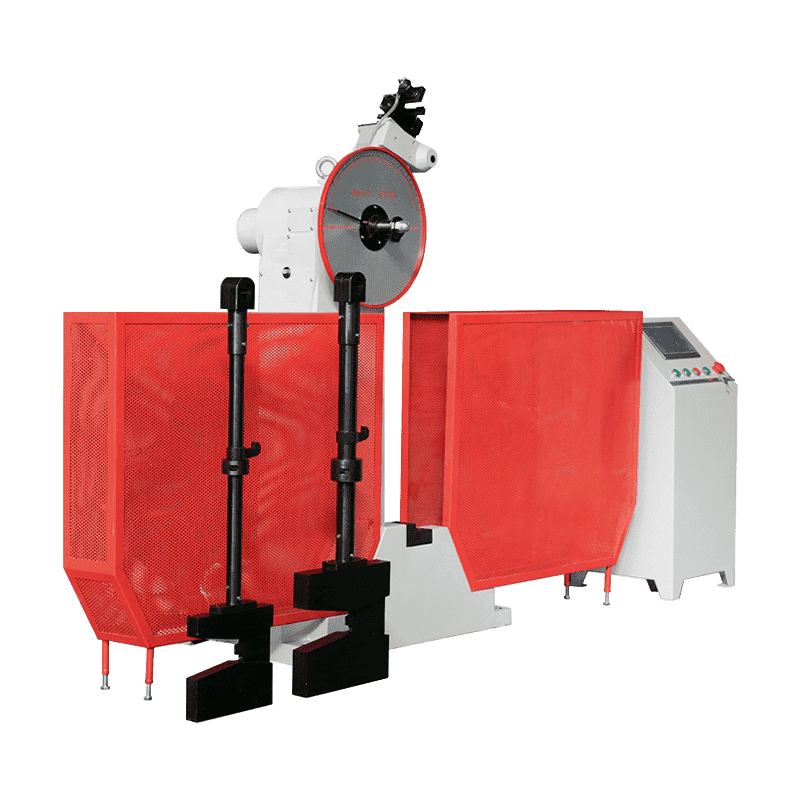

JBS-500B 500J Digital display impact testing machine
-
Max.impact energy
250J,500J
-
Round angle of impact edge
R2-2.5mm,R8+0.05(special order)mm
-
Pendulum moment 500J
267.9492N.m
-
Pendulum moment 250J
133.9746N.m
PIT502T Touch screen Digital Display Charpy Impact Testing Machine is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.
JBS-500B 500J Digital display impact testing machine
PIT502T Touch screen Digital Display Charpy Impact Testing Machine is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.
-
Max.impact energy:250J,500J；
-
Round angle of impact edge:R2-2.5mm,R8+0.05(special order)mm；
-
Pendulum moment 500J:267.9492N.m；
-
Pendulum moment 250J:133.9746N.m；
-
The distance between the pendulum shaft and impact point:800mm；
Product Details
Application
PIT502T Touch screen Digital Display Charpy Impact Testing Machine is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.
This series tester is operated semi-automatically, the pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.
Product parameters
|
Max.impact energy 250J,500J |
Round angle of impact edge R2-2.5mm,R8+0.05(special order)mm |
Pendulum moment 500J 267.9492N.m |
|
Pendulum moment 250J 133.9746N.m |
The distance between the pendulum shaft and impact point 800mm |
Standard span 40+0.2mm |
|
Impact speed 5.4m/s |
Raised angle 150° |
Round angle of the jaw R1-1.5mm |
|
Round angle of impact edge R2-2.5mm,R8+0.05mm |
Thickness of lmpact Blade 16 mm |
Angle accuracy 0.1° |
|
Weight 650Kg |
Power supply 3 phases 4 lines, 50Hz,380V |
Applicable industries
