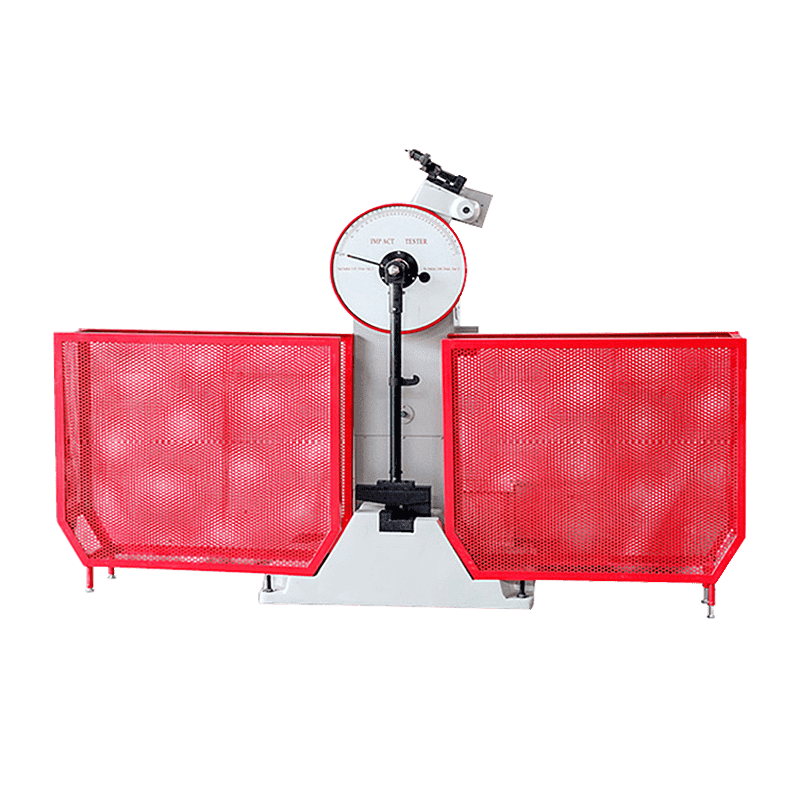

JB-500B 500J Motorized Impact testing machine

Max.impact energy

250J.500J

Dial scale range and dividing value

0-500J(5J),0~250J(2.5J)

Pendulum moment 500J

267.9492N.m

Pendulum moment 250J

133.9746N.m

PIT502M impact testing machines are used to determine the impact toughness of metal materials under dynamic load. The pendulum of the machine can be raised or released automatically.

Get a Quote

Learn more

JB-500B 500J Motorized Impact testing machine

JB-500B 500J Motorized Impact testing machine

PIT502M impact testing machines are used to determine the impact toughness of metal materials under dynamic load. The pendulum of the machine can be raised or released automatically.

Max.impact energy:250J.500J；

Dial scale range and dividing value:0-500J(5J),0~250J(2.5J)；

Pendulum moment 500J:267.9492N.m；

Pendulum moment 250J:133.9746N.m；

Standard span:40+0.2mm；

Get a Quote

Product Details

Application

PIT502M impact testing machines are used to determine the impact toughness of metal materials under dynamic load. The pendulum of the machine can be raised or released automatically. They have the features of easy operation, high efficiency, safe and reliable. The machines are especially suitable for laboratory, metallurgy industry, machinery production, steel plant and other fields.

Product parameters

Max.impact energy 250J.500J	Dial scale range and dividing value 0-500J(5J),0~250J(2.5J)	Pendulum moment 500J 267.9492N.m
Pendulum moment 250J 133.9746N.m	Standard span 40+0.2mm	The distance between the pendulum shaft and impact point 800mm
Impact speed 5.4 m/s	Raised angle 150°	Round angle of the jaw R1~1.5mm
Round angle of impact edge R2~2.5mm,R8+0.05mm	Thickness of lmpact Blade 16 mm	Angle accuracy 0.1°
Weight 500KG	Power supply 3 phase, AC380V+10%,50Hz
