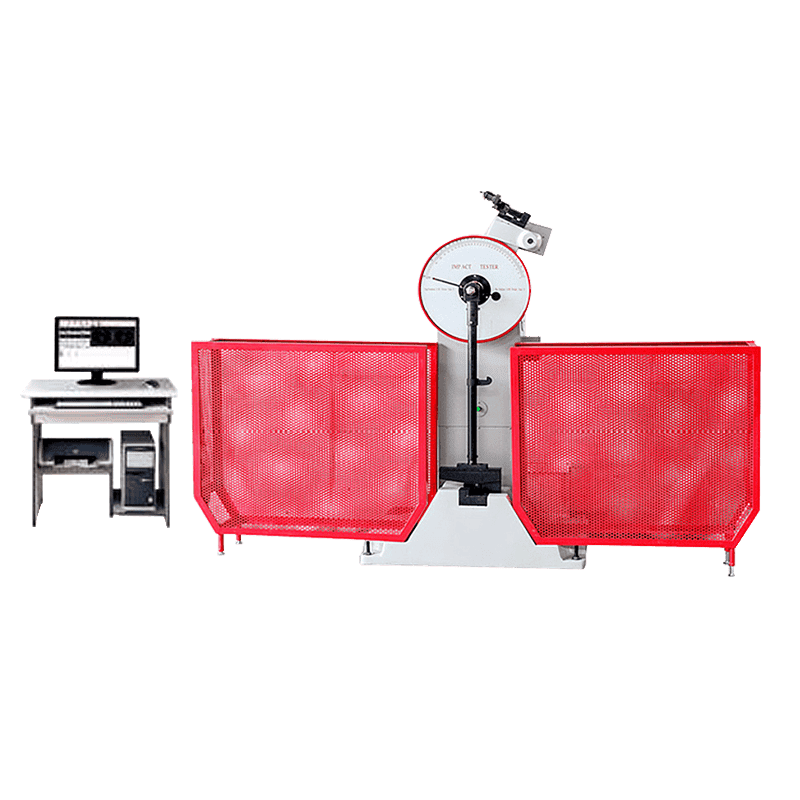

JBW-300B 300j Computer control Impact Testing Machine

Max.impact energy

150J, 300J

Pendulum moment 300J

160.7695N.m

Pendulum moment 150J

80 3848Nm

Standard span

40+0.2mm

PIT302W Computer Control Semi-automatic Charpy Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load.

Get a Quote

Learn more

JBW-300B 300j Computer control Impact Testing Machine

JBW-300B 300j Computer control Impact Testing Machine

PIT302W Computer Control Semi-automatic Charpy Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load.

Max.impact energy:150J, 300J；

Pendulum moment 300J:160.7695N.m；

Pendulum moment 150J:80 3848Nm；

Standard span:40+0.2mm；

Min. Reading Values:1 J；

Get a Quote

Product Details

Application

PIT302W Computer Control Semi-automatic Charpy Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load.

Carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum cycle by means of setting up with computer program,and the results can be monitored, stored and printed out. Control box or computer program control is alternative operating method.

Product parameters

Max.impact energy 150J, 300J	Pendulum moment 300J 160.7695N.m	Pendulum moment 150J 80 3848Nm
Standard span 40+0.2mm	Min. Reading Values 1 J	The distance between the pendulum shaft and impact point 750mm
Lmpact speed 5.2 m/s	Raised angle 150°	Round angle of the jaw R1-1.5mm
Round angle of impact edge R2-2.5mm,R8+0.05mm	Angle accuracy 0.1°	Thickness of lmpact Blade 16 mm
Weight 550KG	Power supply 3 phase, AC380V+10%,50Hz
