JBS-300B 300J Digital display impact testing machine

Max. impact energy

150J, 300J

Min. Reading Values

The distance between the pendulum shaft and impactpoint

750mm

Impact speed

5.2 m/s

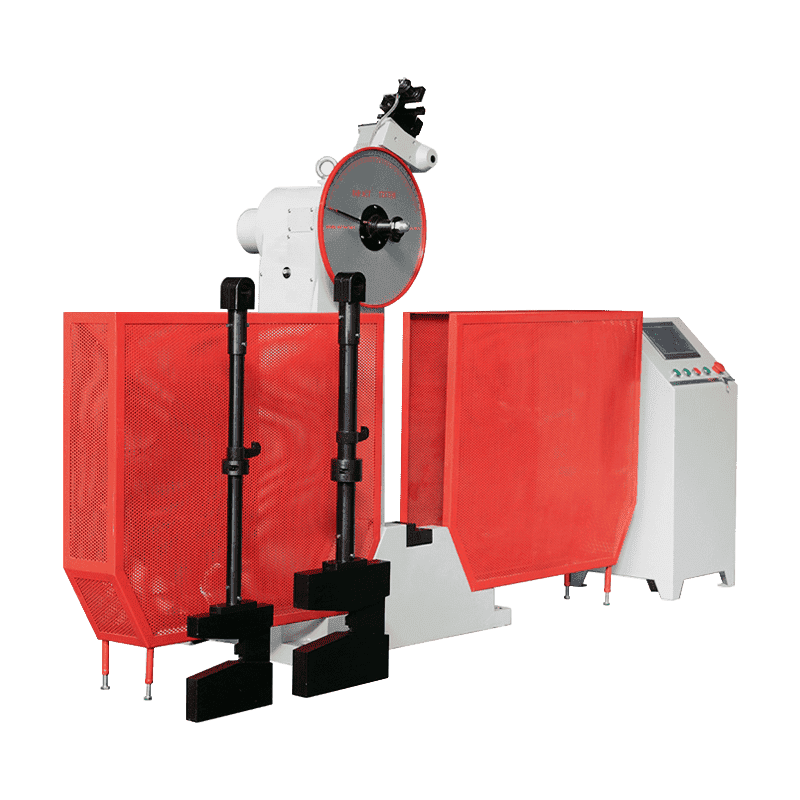

JBS-300B Touch screen Digital Display Charpy Impact Testing Machine is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.

Get a Quote

Learn more

JBS-300B 300J Digital display impact testing machine

JBS-300B 300J Digital display impact testing machine

Max. impact energy:150J, 300J；

Min. Reading Values:1J；

The distance between the pendulum shaft and impactpoint:750mm；

Impact speed:5.2 m/s；

Raised angle:150°；

Get a Quote

Product Details

This series tester is operated semi-automatically, the pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.

Product parameters

Max. impact energy 150J, 300J	Min. Reading Values 1J	The distance between the pendulum shaft and impactpoint 750mm
Impact speed 5.2 m/s	Raised angle 150°	Round angle of the jaw R1-1.5mm
Thickness of lmpact Blade 16 mm	Standard span 40+0.2mm	Round angle of impact edge R2-2.5mm,R8+0.05mm
Angle accuracy 0.1°	Weight 550Kg	Power Supply 3 phases 4 lines, 50Hz,380v
