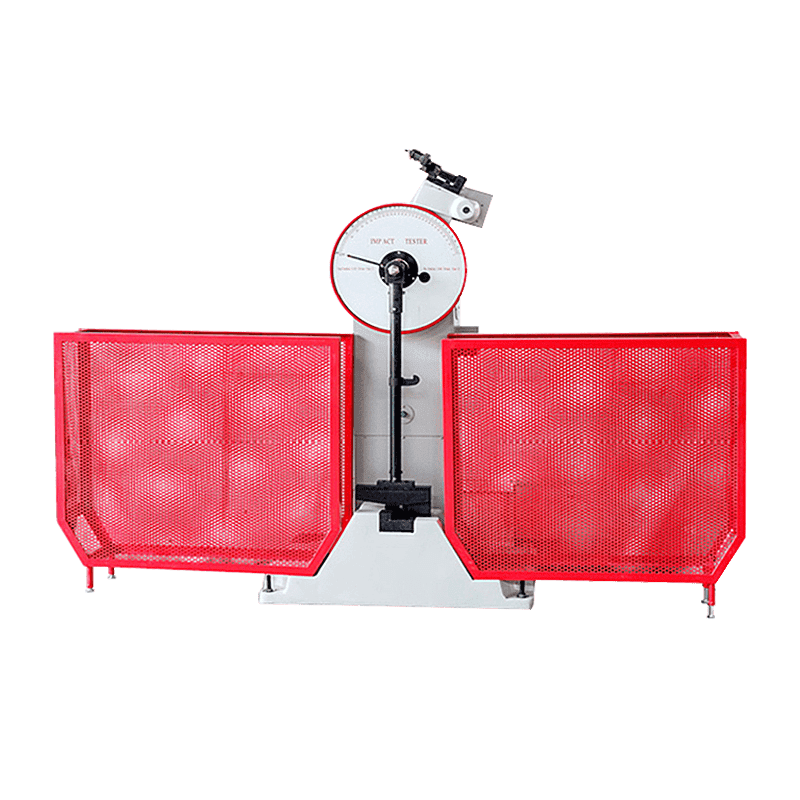

JB-300B 300J Motorized Impact testing machine

Max.impact energy

150J,300J

Dial scale range and dividing value

0-300J(2J),0~150J(1J)

The distance between the pendulum shaft and impact point

750mm

Impact speed

5.2 m/s

JB-300B impact testing machines are used to determine the impact toughness of metal materials under dynamic load. The pendulum of the machine can be raised or released automatically.

Get a Quote

Learn more

JB-300B 300J Motorized Impact testing machine

JB-300B 300J Motorized Impact testing machine

JB-300B impact testing machines are used to determine the impact toughness of metal materials under dynamic load. The pendulum of the machine can be raised or released automatically.

Max.impact energy:150J,300J；

Dial scale range and dividing value:0-300J(2J),0~150J(1J)；

The distance between the pendulum shaft and impact point:750mm；

Impact speed:5.2 m/s；

Raised angle:150°；

Get a Quote

Product Details

JB-300B impact testing machines are used to determine the impact toughness of metal materials under dynamic load. The pendulum of the machine can be raised or released automatically. They have the features of easy operation, high efficiency, safe and reliable. The machines are especially suitable for laboratory, metallurgy industry, machinery production, steel plant and other fields.

Product parameters

Max.impact energy 150J,300J	Dial scale range and dividing value 0-300J(2J),0~150J(1J)	The distance between the pendulum shaft and impact point 750mm
Impact speed 5.2 m/s	Raised angle 150°	Standard span 40+0.2mm
Specimen holder support surface angle 11°	Round angle of the jaw R1-1.5mm	Thickness of lmpact Blade 16 mm
The impact of the blade angle 30°	Round angle of impact edge R2-2.5mm,R8+0.05mm	Angle accuracy 0.1°
Weight 550KG	Power supply 3 phase,AC380V+10%,50HZ
