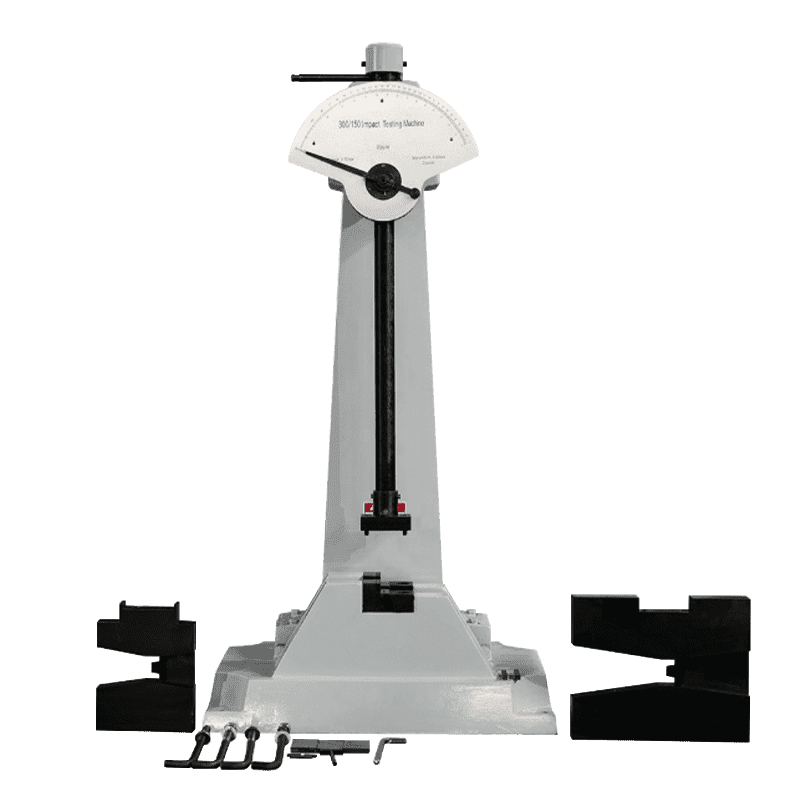

JB-300 300J Manual Impact testing machine
-
Max.impact energy
150J, 300J
-
Dial scale range and dividing value
0-300J(2J),0-150J(1J)
-
The distance between the pendulum shaft and
800mm
-
Impact speed
5.2 m/s
PIT302 Manual Impact Testing Machine is used for measuring the metal material resistance performanceunder dynamic load, in order to determine the material properties under dynamic load.
JB-300 300J Manual Impact testing machine
PIT302 Manual Impact Testing Machine is used for measuring the metal material resistance performanceunder dynamic load, in order to determine the material properties under dynamic load.
-
Max.impact energy:150J, 300J；
-
Dial scale range and dividing value:0-300J(2J),0-150J(1J)；
-
The distance between the pendulum shaft and:800mm；
-
Impact speed:5.2 m/s；
-
Raised angle:135°；
Product Details
PIT302 Manual Impact Testing Machine is used for measuring the metal material resistance performanceunder dynamic load, in order to determine the material properties under dynamic load.
Product parameters
|
Max.impact energy 150J, 300J |
Dial scale range and dividing value 0-300J(2J),0-150J(1J) |
The distance between the pendulum shaft and 800mm |
|
Impact speed 5.2 m/s |
Raised angle 135° |
Standard span 40+0.2mm |
|
Round angle of the jaw R1-1.5mm |
Thickness of lmpact Blade 16 mm |
The impact of the blade angle 30° |
|
Round angle of impact edge R2-2.5mm,R8+0.05mm |
Specimen holder support surface angle 11° |
Angle accuracy 0.1° |
|
Weight 320KG |
Power supply 3 phase,AC380V+10%,50HZ |
