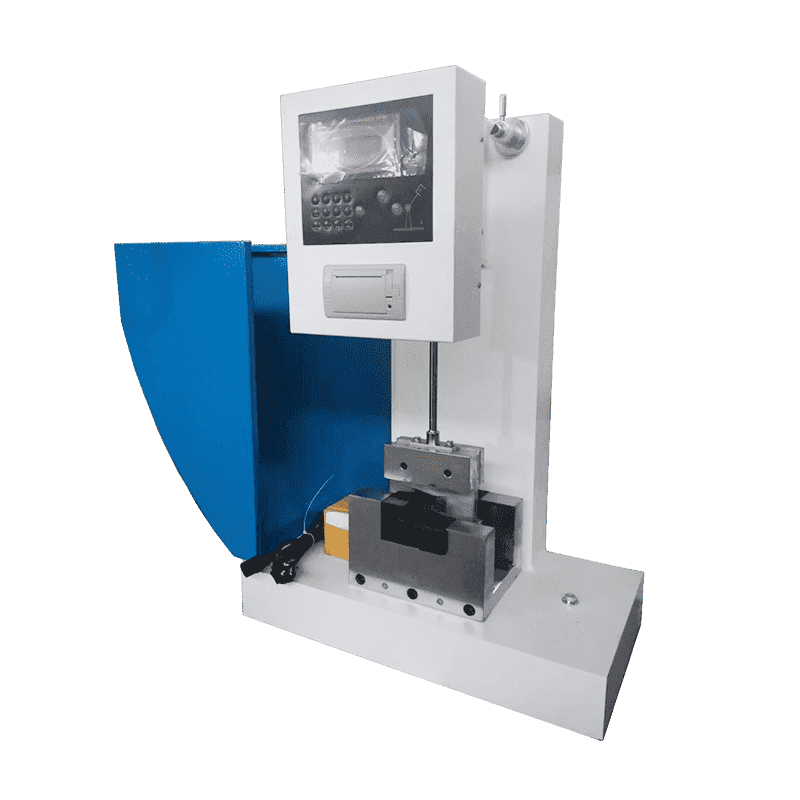

JBS-50 50J Digital display Metal impact testing machine

Impact energy

50J

Pendulum moment

26.79492 N·M

Impact speed

3.8 m/s

pendulum pre-lifting Angle

150°

This impact testing machine is used to measure the impact resistance performance of metal materials under dynamic load, so as to judge the quality status of materials under dynamic load.

Get a Quote

Learn more

JBS-50 50J Digital display Metal impact testing machine

JBS-50 50J Digital display Metal impact testing machine

This impact testing machine is used to measure the impact resistance performance of metal materials under dynamic load, so as to judge the quality status of materials under dynamic load.

Impact energy:50J；

Pendulum moment:26.79492 N·M；

Impact speed:3.8 m/s；

pendulum pre-lifting Angle:150°；

The span of the sample support:30-40mm adjustable；

Get a Quote

Product Details

Application:

This impact testing machine is used to measure the impact resistance performance of metal materials under dynamic load, so as to judge the quality status of materials under dynamic load. This testing machine is suitable for ferrous metals and cemented carbide materials with small impact toughness, which can be used for the impact of metal materials in the material laboratories of scientific research units, colleges and universities, metallurgy and machinery manufacturing industries.

Product parameters

Impact energy 50J	Pendulum moment 26.79492 N·M	Impact speed 3.8 m/s
pendulum pre-lifting Angle 150°	The span of the sample support 30-40mm adjustable	Support pliers rounded Angle R1.0~1.5mm
Impact blade rounded Angle R2.0~2 5mm	Pendulum center to impact point 395	Standard sample size 101055 / 5550mm
Digital display resolution Angle: 0.01°	Power supply AC220V+10% 50HZ
