KASON CST-50M Charpy Projector For Impact Tester

KASON CST-50M Charpy Projector For Impact Tester

Charpy Projector For Impact Tester.Model CST-50 is a kind of special projector, which amplifies and projects the U or V-shaped profiles of the measured parts to the screen to check their profiles and shapes with high accuracy utilizing the optical projection method.

Request a Quote

Product Details

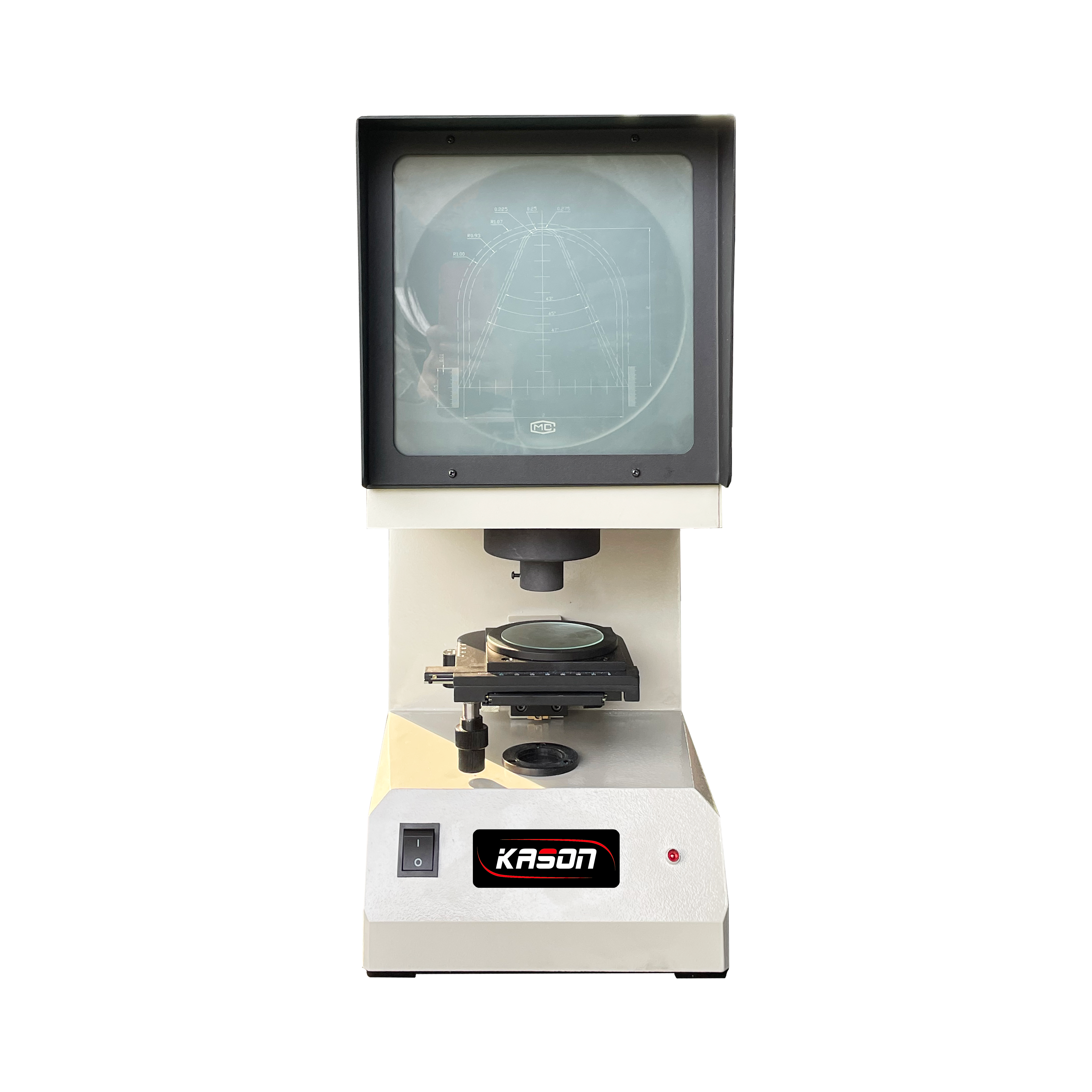

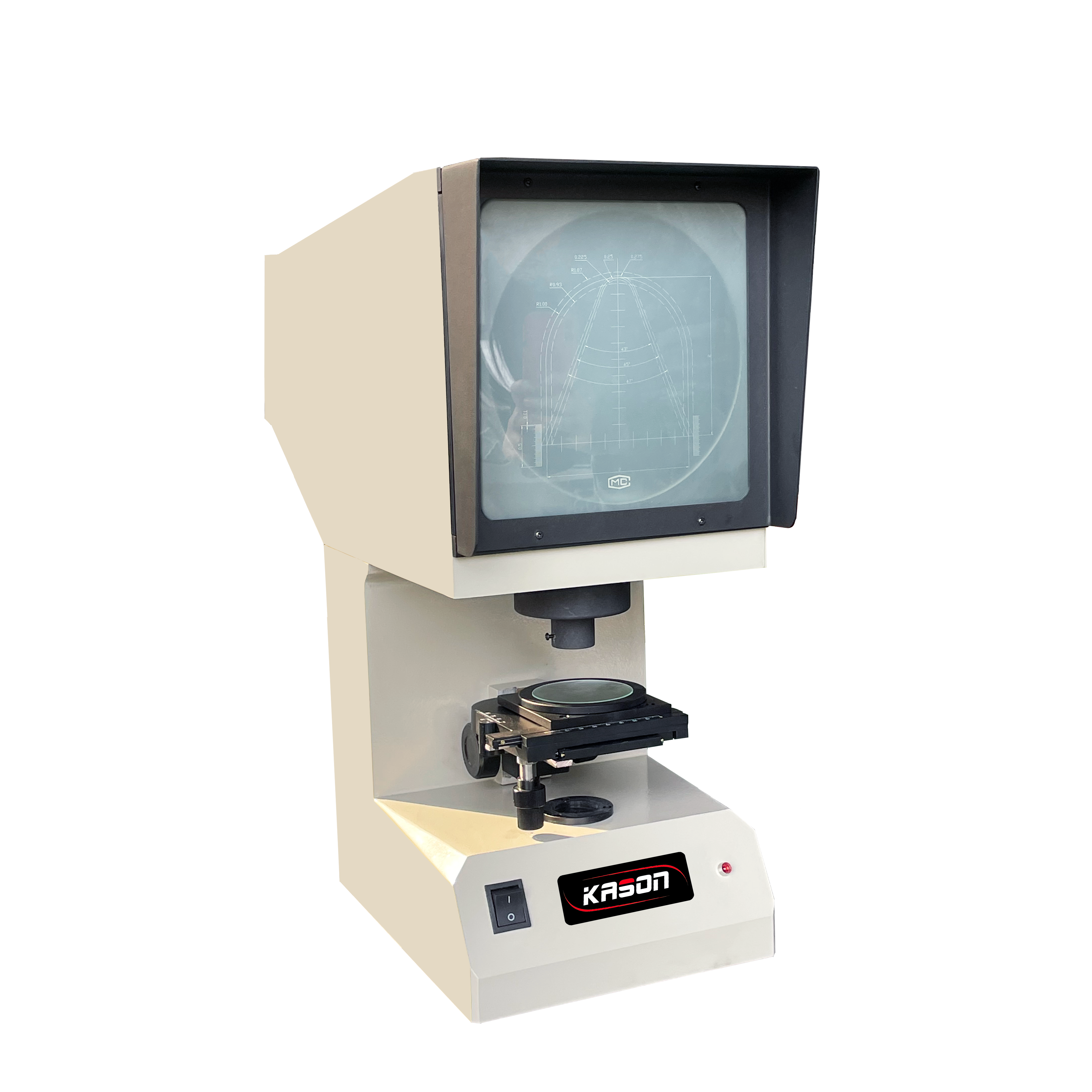

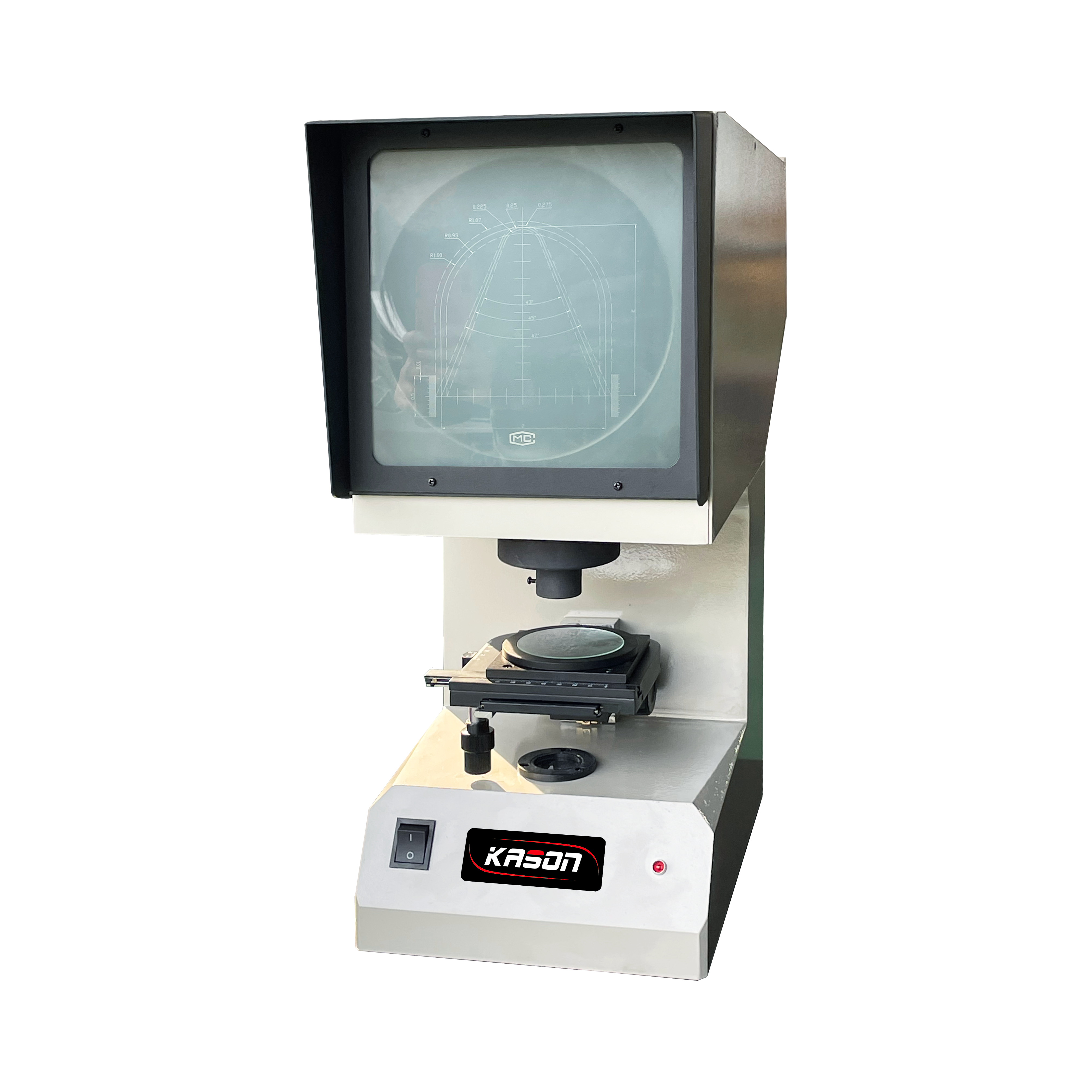

KASON CST-50M Charpy Projector For Impact Tester

Model KASON CST-50M is a kind of special projector, which amplifies and projects the U or V-shaped profiles of the measured parts to the screen to check their profiles and shapes with high accuracy utilizing the optical projection method. It is widely used to check the U and V-shaped notch impact specimen with the features of easy operation, simple structure, direct inspection and high efficiency.
Magnifications: 50XO;   bjective magnification: 2.5X
Projection objective magnification: 2.5X ; Eye-field diameter: 3mm
Working distance: 22.89mm; Light source: tungsten lamp 12v10W

Product parameters

Total Magnification: 50×

·  Objective Lens Magnification: 2.5×

·  Projection Lens Magnification: 20×

·  Projection Screen Diameter: 200 mm

·  Worktable Dimensions:Rectangular Table: 110 × 125 mm;Round Table: Φ90 mm;Worktable Glass Diameter: Φ70 mm

·  Worktable Travel:

Vertical: ±10 mm

Horizontal: ±10 mm

Lifting: ±12 mm (without scale)

·  Worktable Rotation Range: 0°～360° (without scale)

·  Light Source (Tungsten-Halogen Lamp): 12V 100W

·  Power Supply: 220V, 50Hz

·  Overall Dimensions (L×W×H): 515 × 224 × 603 mm

·  Weight: Approx. 20 kg
