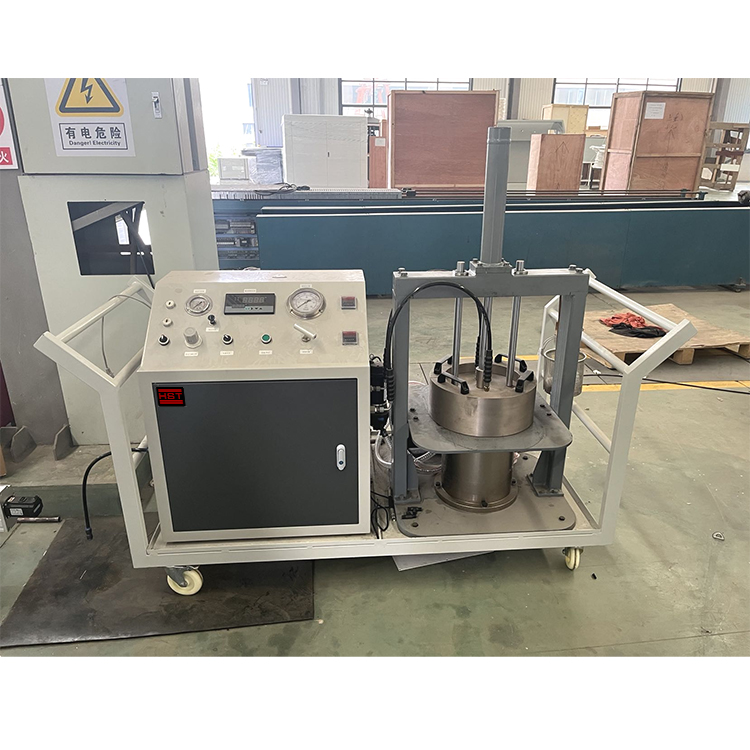

HSTP35 Porosity Testing Machine

Pressurized medium

Water, alcohol

Power source

0.4-0.8Mpa clean compressed air

Output pressure calculation formula

80 times driving air pressure

Maximum test pressure

35MPa

It uses compressed air as the power source and a gas-liquid booster pump as the pressure source. Theinputwater pressure is 80 times proportional to the driving air source pressure. By adjusting the driving air source pressure, the corresponding boosted water pressure can be obtained.

Request a Quote Download

Home >> Products >> Insulator testing machine

HSTP35 Porosity Testing Machine

Request a Quote

Product Details

Features:

It uses compressed air as the power source and a gas-liquid booster pump as the pressure source. Theinputwater pressure is 80 times proportional to the driving air source pressure. By adjusting the driving air source pressure, the corresponding boosted water pressure can be obtained. Whenthe driving air source pressure is balanced with the boosted liquid pressure, the booster pumpstopschargingand the input water pressure stabilizes at the preset pressure. Therefore, it has the characteristics of explosion-proof, adjustable output pressure, small size, light weight,simple operation, reliable performance and wide range of use.

Product parameters

Pressurized medium	Water, alcohol
Power source	0.4-0.8Mpa clean compressed air
Output pressure calculation formula	80 times driving air pressure
Maximum test pressure	35MPa
Maximum flow	2.4L/min
Maximum air consumption	1.2M3/min@6.5bar
Compressed air interface	Φ12 quick-plug connector
Liquid high pressure outlet	NP1/4 internal thread
Hyperbaric chamber size	inner diameter 200mm, height 300mm
Holding time requirement	6 hours
