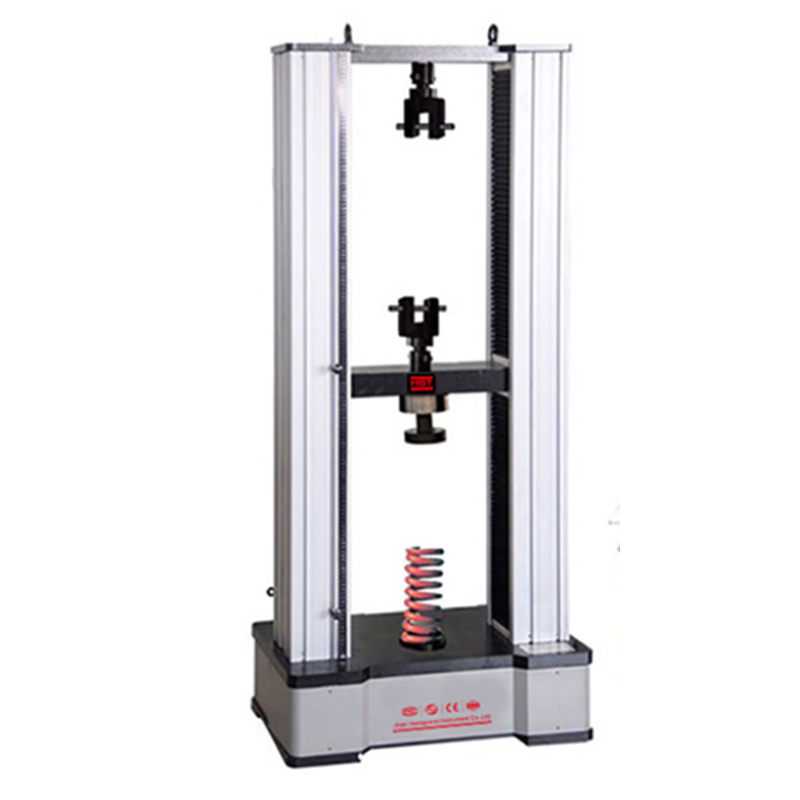

TLS-D Digital Automatic Spring Tensile and Compression Load Testing Machine（0.5-100KN)
- Max. Testing force
10KN,20KN,50kN,100kN
- Control type
Digital display
- Accuracy
0.5 class
- Testing range
2%～100%F·S
This testing machine is mainly used to measure the tensile test and compression test of various coil springs. It can test both the spring load under a certain deformation and the spring deformation under a certain load. Mainly used in spring manufacturers, low-voltage electrical appliances, machinery, universities and research laboratories.
- Home >> Products >> Spring teser
TLS-D Digital Automatic Spring Tensile and Compression Load Testing Machine（0.5-100KN)
TLS-D Digital Automatic Spring Tensile and Compression Load Testing Machine（0.5-100KN)
This testing machine is mainly used to measure the tensile test and compression test of various coil springs. It can test both the spring load under a certain deformation and the spring deformation under a certain load. Mainly used in spring manufacturers, low-voltage electrical appliances, machinery, universities and research laboratories.
Request a QuoteProduct Details
This testing machine is mainly used to measure the tensile test and compression test of various coil springs. It can test both the spring load under a certain deformation and the spring deformation under a certain load. Mainly used in spring manufacturers, low-voltage electrical appliances, machinery, universities and research laboratories.
Product parameters
|
Model |
HST -TLS10D |
HST -TLS20D |
HST- TLS-50D |
HST- TLS-100D |
|
Max. Testing force |
10KN |
20KN |
50kN |
100kN |
|
Control type |
Digital display |
|||
|
Accuracy |
0.5 class |
|||
|
Testing range |
2%～100%F·S |
|||
|
Relative error of test force indication |
≤±1% |
|||
|
Relative error of displacement indication |
≤±1% |
|||
|
Displacement display resolution |
0.01mm |
|||
|
Deformation indication error |
≤±（50+0.15L）um |
|||
|
Speed range |
0.05-500 mm/min |
|||
|
Tensile and compression space |
700mm |
|||
|
Diameter of compression plate |
100mm |
|||
|
Power |
AC220V±10%，50Hz |
|||
