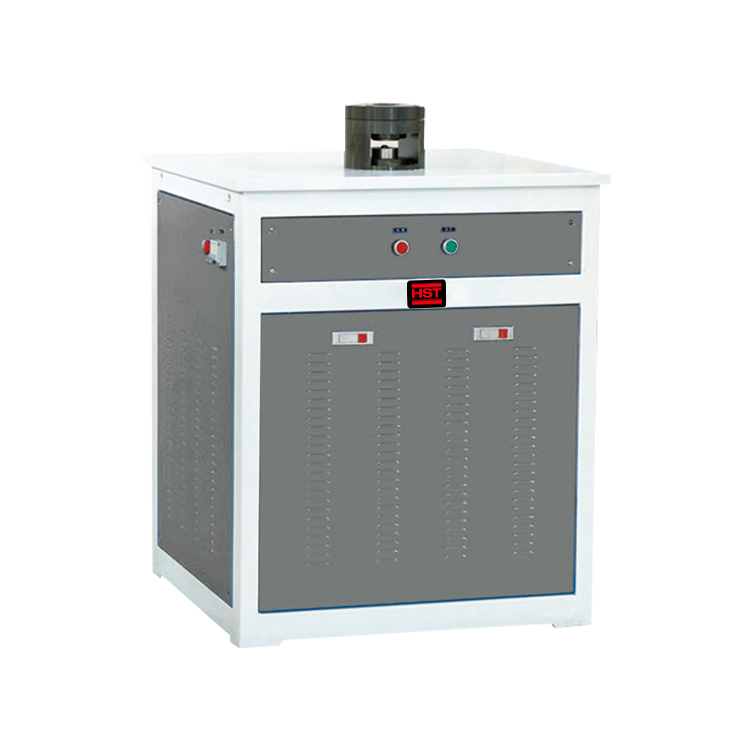

Maximum test thickness

Standard cupping test 0.05～2mm (high-precision sensor, can realize ultra-thin plate test)

Maximum width of sheet

100mm

Maximum stroke of punch

60mm

Maximum cup load

60kN

Clamping piston stroke

19-21mm

Maximum clamping load

25kN

Cupping value resolution

0.01mm

Test force measurement accuracy

±1%

Deformation accuracy

±0.5%

Test speed

0.05mm/min-200mm/min（Stepless speed regulation）

Test mold specifications (Standard)

Punch diameter:Φ20±0.05mm，cushion mold hole diameter : Φ33±0.1mm

Fixed mold hole diameter: Φ27±0.05mm

Standard press mold hole diameter : Φ27±0.05mm; ( Non-Standard )

Test mold specifications (Non-Standard)

Punch diameter : Φ15±0.05mm , Φ8±0.02mm, Φ3±0.02mm

Press mold hole diameter : Φ18±0.1mm, Φ10±0.1mm ,Φ3.5±0.1mm

Fixed mold hole diameter : Φ21±0.02mm ,Φ11±0.02mm , Φ5±0.02mm

Computer display content

Clamping load, pressing force, displacement, cupping value, speed, test curve, etc.

way to control

The computer automatically realizes the test process, the background database adopts ACCES, and data transmission software in multiple formats can be provided according to user requirements

Hydraulic oil

N46 hydraulic oil

power supply

AC380V，AC220V
