KASON TN-MS Series Touch screen Manual SpringTorsion Testing Machine (0.5-5000Nmm)
- Max Test force(N/mm)
50,100,200,500,1000,2000,5000
- Test range
2%-100%
- Test machine class
1 class
- Test force Min reading value
0.01nm

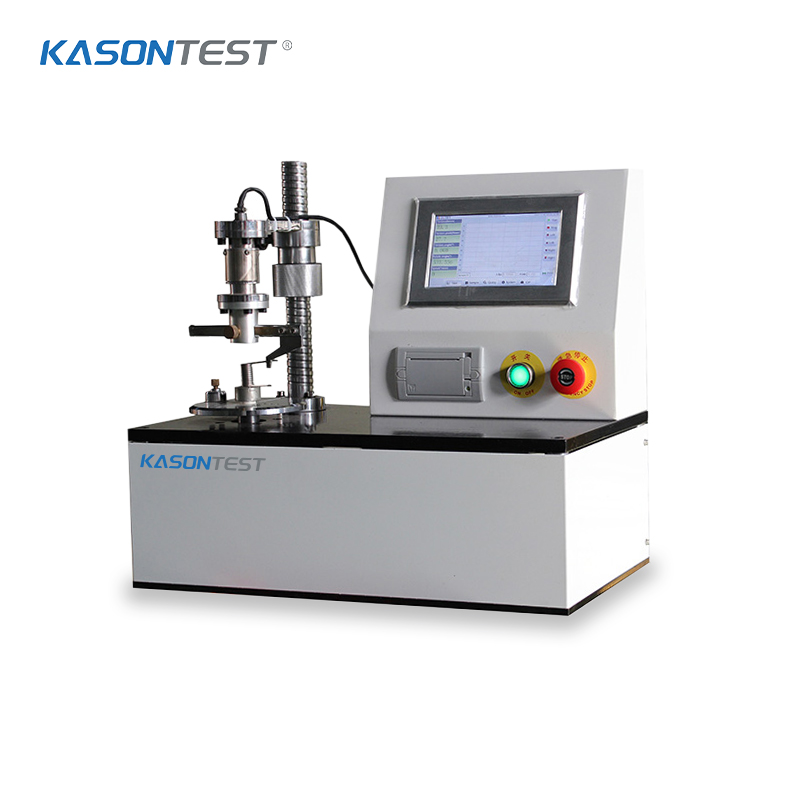

The TN-MS series is a new type of manual spring torsion testing machine developed by our factory, featuring a large LCD display and touch control. It is mainly suitable for testing the torsion angle and torsional torque of torsion springs, coil springs, elastic elements, and friction mechanisms .
- Home >> Products >> Spring tester
KASON TN-MS Series Touch screen Manual SpringTorsion Testing Machine (0.5-5000Nmm)
KASON TN-MS Series Touch screen Manual SpringTorsion Testing Machine (0.5-5000Nmm)
The TN-MS series is a new type of manual spring torsion testing machine developed by our factory, featuring a large LCD display and touch control. It is mainly suitable for testing the torsion angle and torsional torque of torsion springs, coil springs, elastic elements, and friction mechanisms .
Request a QuoteProduct Details
The TN-MS series is a new type of manual spring torsion testing machine developed by our factory, featuring a large LCD display and touch control. It is mainly suitable for testing the torsion angle and torsional torque of torsion springs, coil springs, elastic elements, and friction mechanisms . It can measure both the torque corresponding to a certain torsion angle and the torsion angle corresponding to a certain torque. It is primarily suitable for spring manufacturing, low-voltage electrical appliances, power machinery, universities, and research laboratories.
Product parameters
|
Specifications ( N mm) |
50/100-500/1000-5000 Nmm |
|
Power |
Hand wheel loading |
|
Control Unit |
Micro-controller system, industrial-grade LCD screen, multi-function buttons |
|
Data processing |
Automatic data collection and processing; can be saved, queried, and printed. |
|
Range |
2% -100% |
|
Torque reading (N/mm) |
0.01 |
|
Torque indication repeatability error |
± 1 % |
|
Minimum reading of torsion angle (°) |
0.1 |
|
Torque indication error ( ° ) |
± 1 % |
|
Maximum height of the specimen (mm) |
120 |
|
Diameter of torsional plate (mm) |
130 (can customized) |
|
Dimensions (mm) |
510 × 3 0 0 × 480 |
|
Weight (kg) |
45 |
|
Power supply |
AC 220V±10% 50Hz |
|
Protection function |
Sensor overload protection |
|
noise |
≤ 50dB(A) |
|
Testing machine level |
Level 1 |
