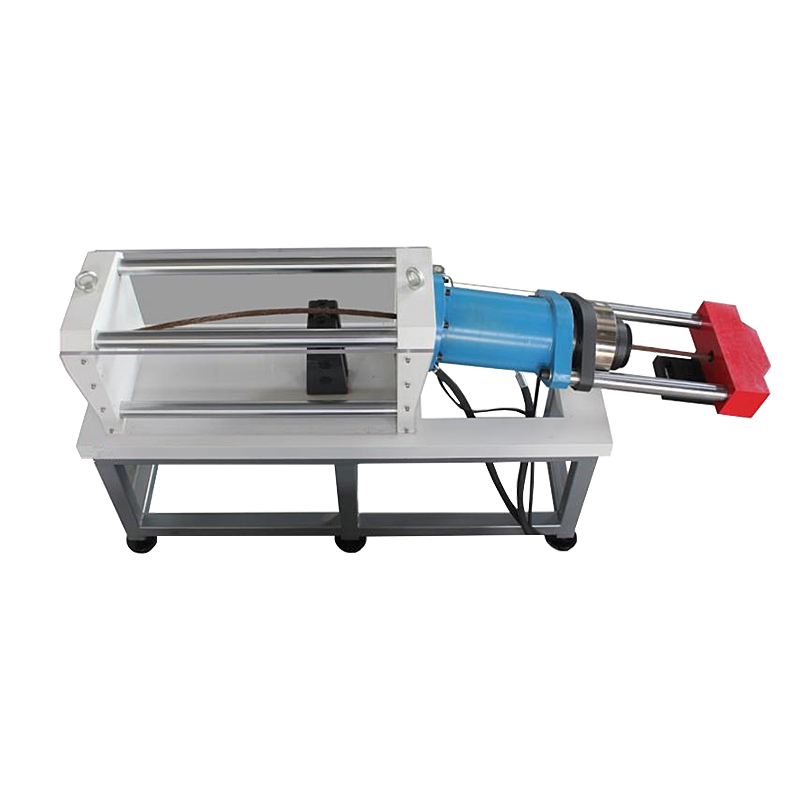

SXT-500W 500 KN/50Ton PC Strand Deflection Tensile Testing Machine

Capacity

500 KN/50Ton

Standards

IS0 15630-3

Measuring range

20-500 kN

Load resolution

15N

SXT-500W PC Strand Deflection Testing Machine is designed for deflected tensile test on wire strand according to ISO 15630-3, this test method is used to determine the reduction coefficient of the maximum force in uniaxial tension due to deviation of 20o around a mandrel.

Get a Quote

Learn more

SXT-500W 500 KN/50Ton PC Strand Deflection Tensile Testing Machine

SXT-500W 500 KN/50Ton PC Strand Deflection Tensile Testing Machine

Capacity:500 KN/50Ton；

Standards:IS0 15630-3；

Measuring range:20-500 kN；

Load resolution:15N；

Load accuracy:+0.5%；

Get a Quote

Product Details

SXT-500W PC Strand Deflection Testing Machine is designed for deflected tensile test on wire strand according to ISO 15630-3, this test method is used to determine the reduction coefficient of the maximum force in uniaxial tension due to deviation of 20o around a mandrel.

SXT-500W PC Strand is powered with a servo-hydraulic power pack which is controlled with a software for obtaining testing curves and results. Interchangeable triple wedge anchorage for wire strand of different diameters. Calibration of load cell directly done on the machine with load cell calibration set-up.

Product parameters

Capacity 500 KN/50Ton	Standards IS0 15630-3	Measuring range 20-500 kN
Load resolution 15N	Load accuracy +0.5%	Position accuracy +0.5%
Horizontal span 1750 mm	Loading stroke 200 mm	Loading speed 100-5000 N/S
Stress speed 0-60 MPa/s	Mandrel dimension Ф40 mm, Ф49 mm, Ф 59 mm	Machine Dimensions 1800mmx800 mmx1300 mm
Weight 1000 kg	Humidity Range 10% to 90% non-condensing
