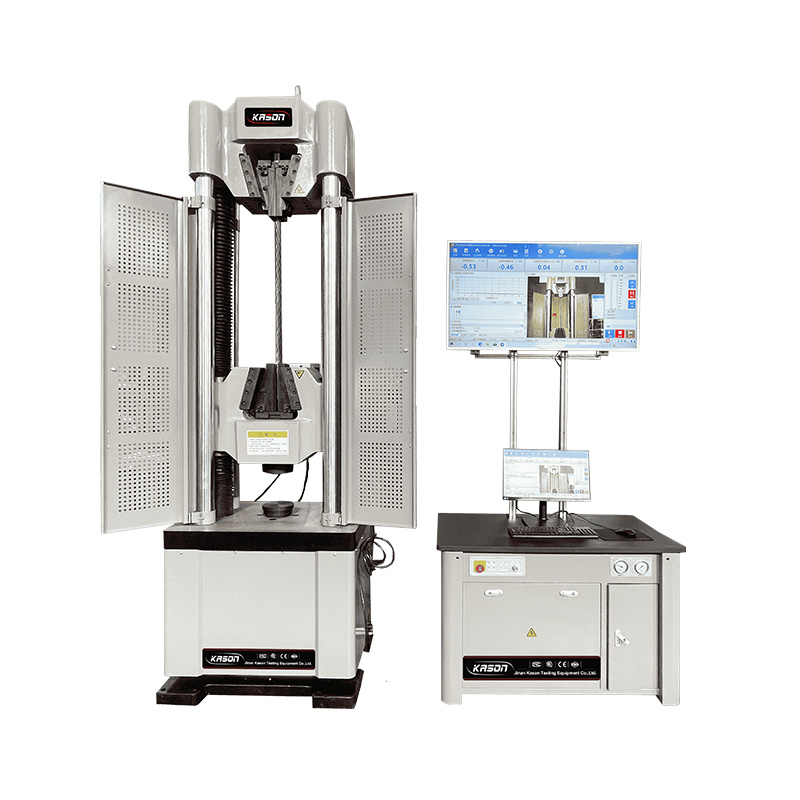

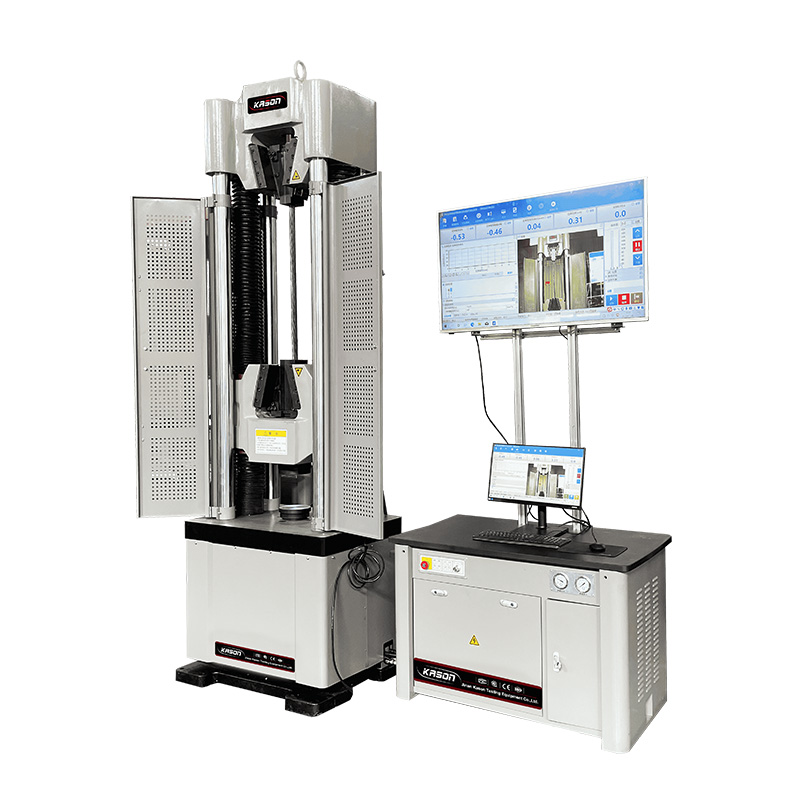

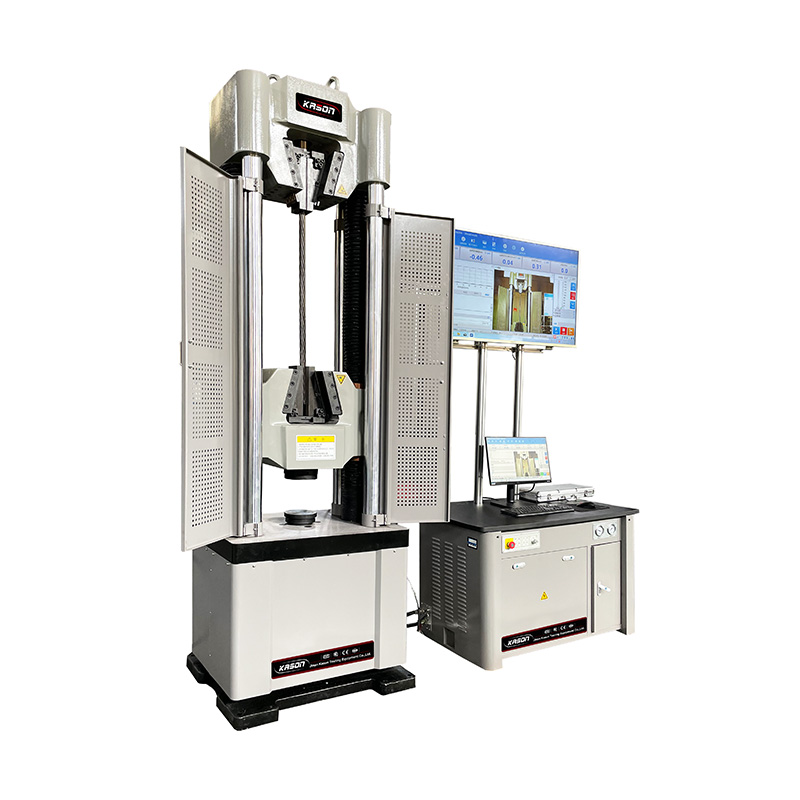

LAW600E 600KN/60Ton Computer control steel strand tensile testing machine

Load Capacity

600KN/60Ton

Calibration standard

IS0 7500 Class 1

Testing Load Accuracy

±0.5%

Load Measuring Range

1%~100%FS

HUT Series Computer-Controlled Servo-hydraulic Universal Testing Machine is ideal for high-capacity steel wire tension testing, also can be used for compression, bend/flex, and shear testing

Get a Quote

Learn more

LAW600E 600KN/60Ton Computer control steel strand tensile testing machine

LAW600E 600KN/60Ton Computer control steel strand tensile testing machine

HUT Series Computer-Controlled Servo-hydraulic Universal Testing Machine is ideal for high-capacity steel wire tension testing, also can be used for compression, bend/flex, and shear testing

Load Capacity:600KN/60Ton；

Calibration standard:IS0 7500 Class 1；

Testing Load Accuracy:±0.5%；

Load Measuring Range:1%~100%FS；

Load Resolution:1/500.000 of FS；

Get a Quote

Product Details

Application:

HUT Series Computer-Controlled Servo-hydraulic Universal Testing Machine is ideal for high-capacity steel wire tension testing, also can be used for compression, bend/flex, and shear testing

Types of specimens and materials:

Ø Metals-(wire, rod, tube, strip, plate, strip) ;

Ø Fasteners (tensile, proof, single and double shear) ;

Ø Construction materials (reinforcement bar, wire, mesh, folding, compression of concrete and components).,etc.

Product parameters

Load Capacity 600KN/60Ton	Calibration standard IS0 7500 Class 1	Testing Load Accuracy ±0.5%
Load Measuring Range 1%~100%FS	Load Resolution 1/500.000 of FS	Testing Speeds 0~100mm/min
Displacement Resolution 0.0025mm	Load frame dimension 860x740x2600mm	Max. Tensile Testing Space 1400mm(include grip)
Max. Compression Testing Space 1100mm(include grip)	Max. Piston stroke 250mm	Weight 2750kg
Power supply 3 phase, AC380V+10%,50Hz	Power consumption 2.75kW
