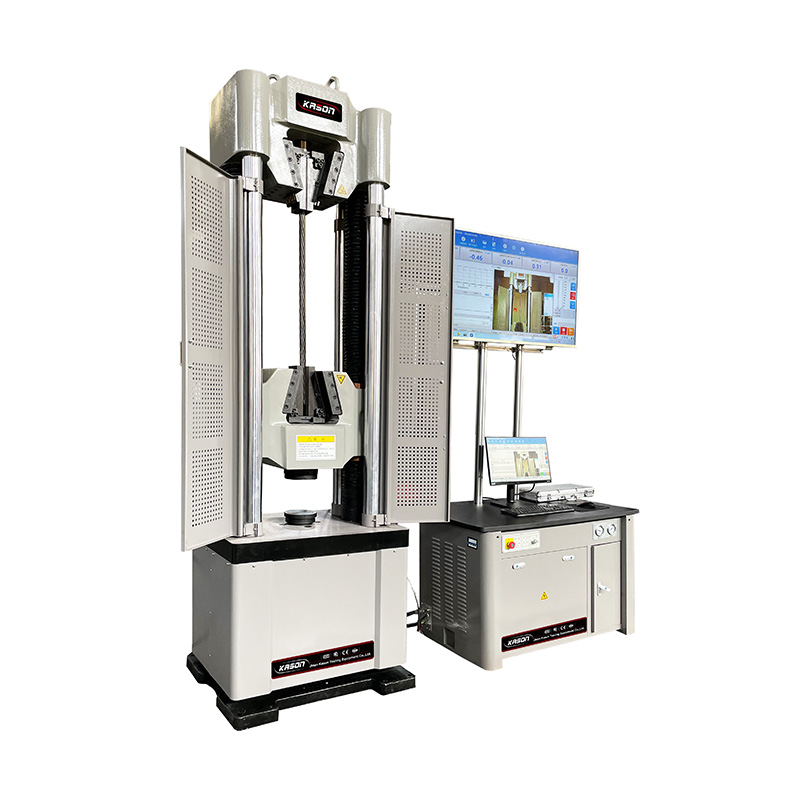

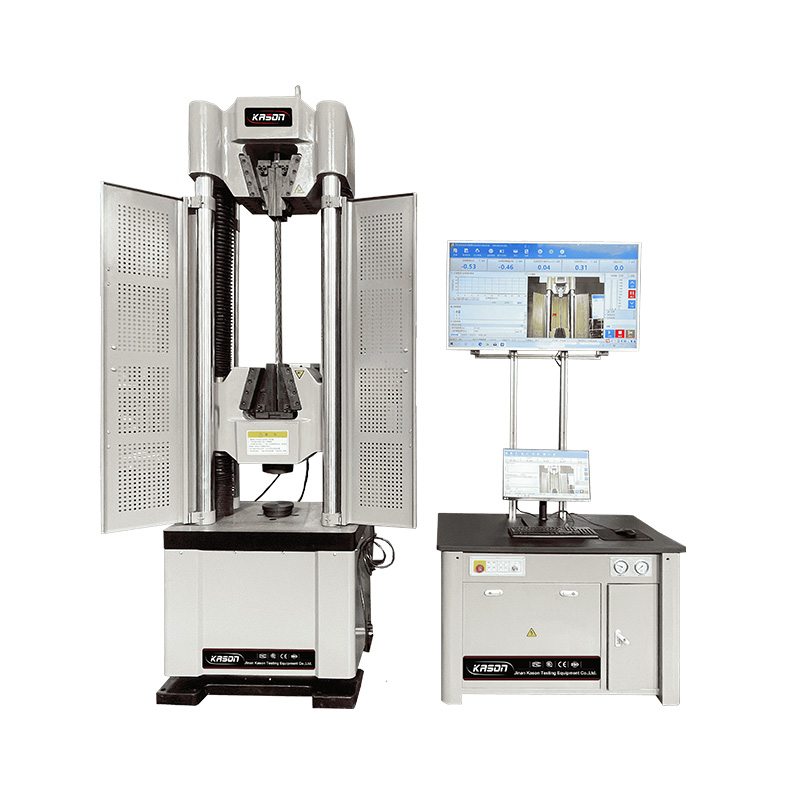

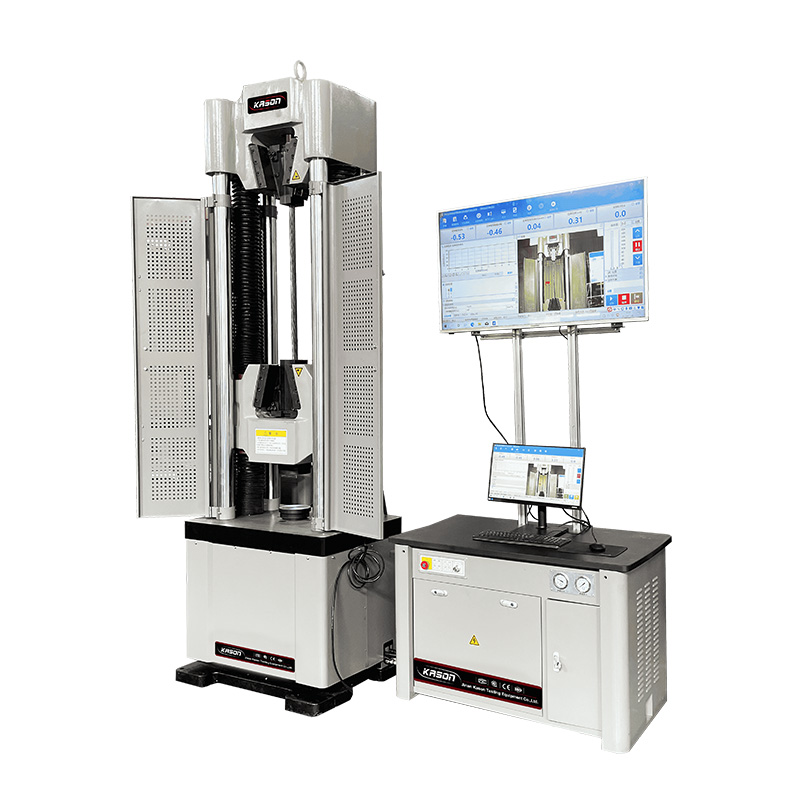

LAW1200E 1200KN/120Ton Computer control steel Wire tensile testing machine

Load Capacity

1200KN/120Ton

Calibration standard

IS0 7500 Class 0.5

Testing Load Accuracy

±0.5%

Load Measuring Range

1%~100%FS

HUT Series Computer-Controlled Servo-hydraulic Universal Testing Machine is ideal for high-capacity steel wire tension testing, also can be used for compression, bend/flex, and shear testing

Get a Quote

Learn more

LAW1200E 1200KN/120Ton Computer control steel Wire tensile testing machine

LAW1200E 1200KN/120Ton Computer control steel Wire tensile testing machine

HUT Series Computer-Controlled Servo-hydraulic Universal Testing Machine is ideal for high-capacity steel wire tension testing, also can be used for compression, bend/flex, and shear testing

Load Capacity:1200KN/120Ton；

Calibration standard:IS0 7500 Class 0.5；

Testing Load Accuracy:±0.5%；

Load Measuring Range:1%~100%FS；

Load Resolution:1/500.000 of FS；

Get a Quote

Product Details

Application:

HUT Series Computer-Controlled Servo-hydraulic Universal Testing Machine is ideal for high-capacity steel wire tension testing, also can be used for compression, bend/flex, and shear testing

Types of specimens and materials:

Ø Metals-(wire, rod, tube, strip, plate, strip) ;

Ø Fasteners (tensile, proof, single and double shear) ;

Ø Construction materials (reinforcement bar, wire, mesh, folding, compression of concrete and components).,etc.

Product parameters

Load Capacity 1200KN/120Ton	Calibration standard IS0 7500 Class 0.5	Testing Load Accuracy ±0.5%
Load Measuring Range 1%~100%FS	Load Resolution 1/500.000 of FS	Deformation measuring range 1%~100%FS
Displacement Resolution 0.0025mm	Testing Speeds 0-80mm/min	Max. Tensile Testing Space 1500mm(include grip)
Max. Compression Testing Space 1100mm(include grip)	Max. Piston stroke 250mm	Weight 3600kg
Power supply 3 phase, AC380V+10%,50Hz	Power consumption 3kW
