WAW600J 600KN/60Ton Flat Push Electro-hydraulic Single Space Servo Universal Testing Machine

Load Capacity

600KN/60Ton

Calibration standard

IS0 7500 Class 0.5

Testing Load Accuracy

≤±0.5%

Test force range

1%~100%FS

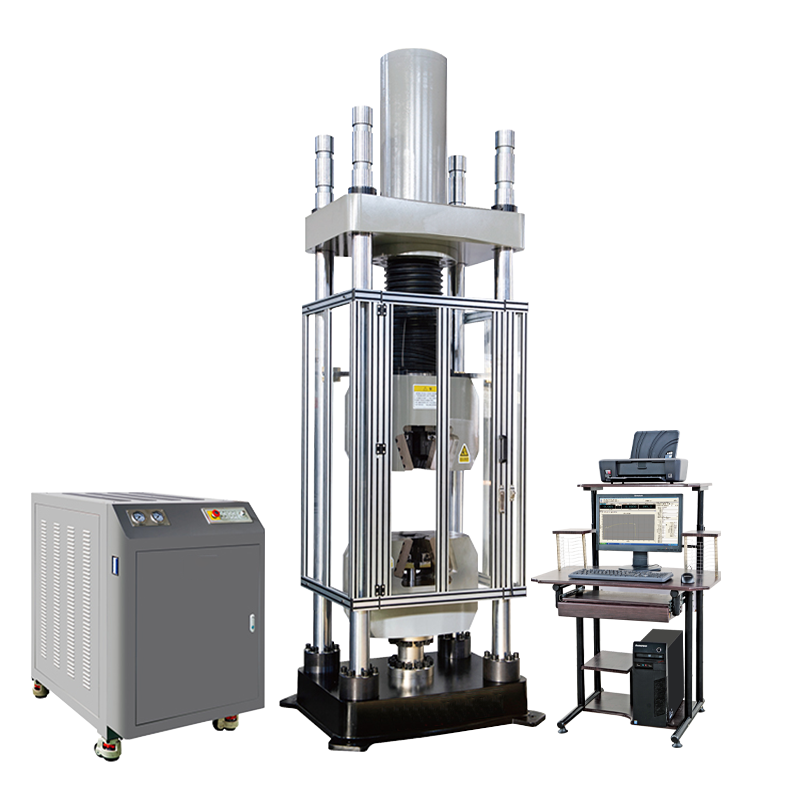

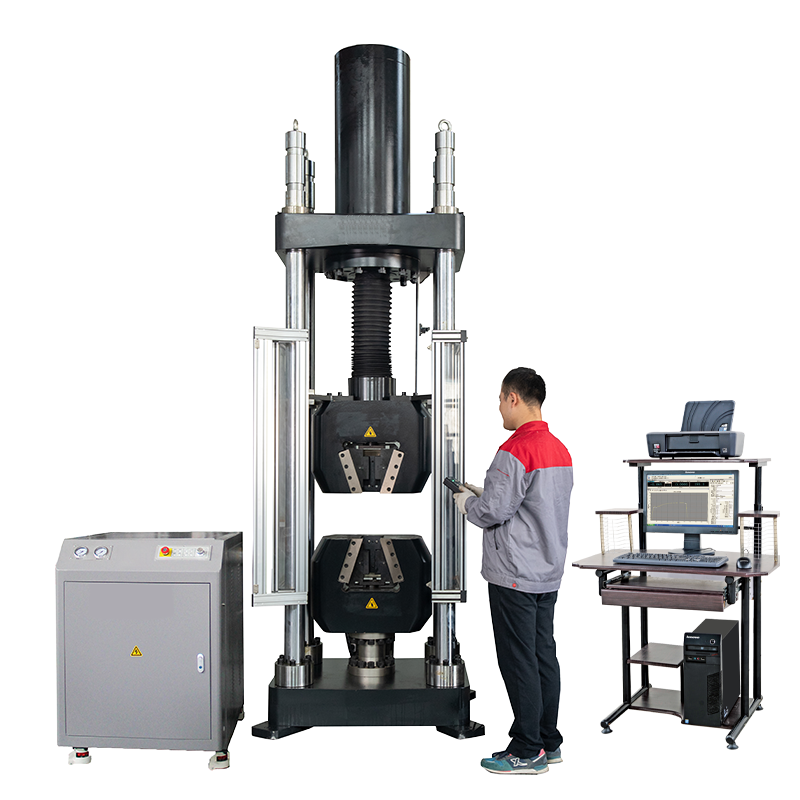

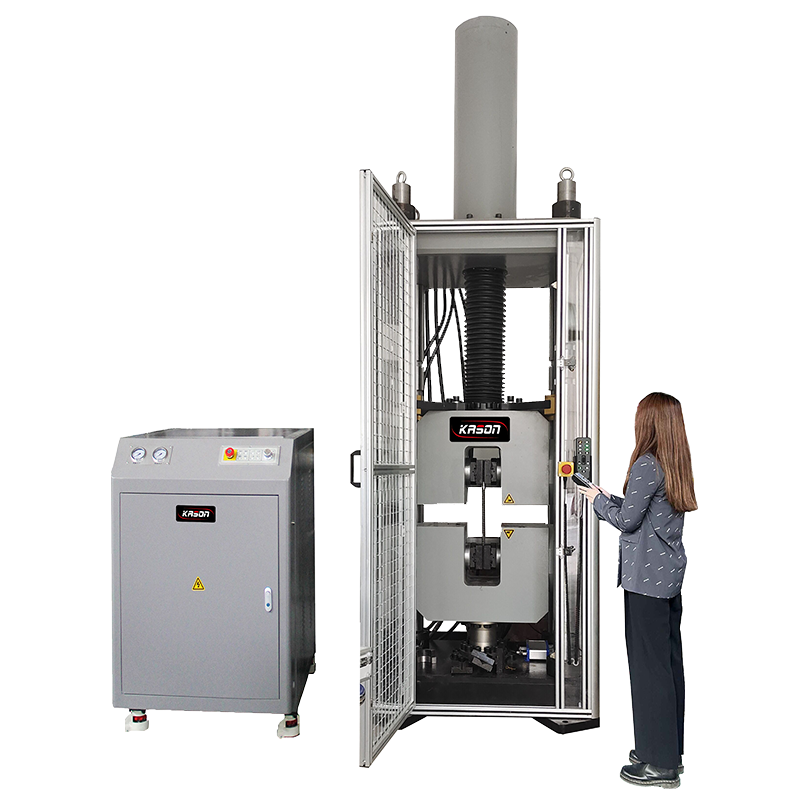

HUT605DJ servo-hydraulic universal testing machine is designed with up-mounted actuator structure. Bidirectional differential cylinder provides bidirectional control of tension and compression in one single space.

Get a Quote

Learn more

WAW600J 600KN/60Ton Flat Push Electro-hydraulic Single Space Servo Universal Testing Machine

WAW600J 600KN/60Ton Flat Push Electro-hydraulic Single Space Servo Universal Testing Machine

Load Capacity:600KN/60Ton；

Calibration standard:IS0 7500 Class 0.5；

Testing Load Accuracy:≤±0.5%；

Test force range:1%~100%FS；

Test force resolution:1/500.000 of FS；

Get a Quote

Product Details

Clearance-free structure and actuator up and down to adjust the test space offers easy operation and high efficiency. This machine is mainly used for tensile test of metallic materials. It provides closed loop control of constant force, constant displacement and constant extension, smoothly switching among them.

Test results can be automatically calculated and be able to printed and exported.

Product parameters

Load Capacity 600KN/60Ton	Calibration standard IS0 7500 Class 0.5	Testing Load Accuracy ≤±0.5%
Test force range 1%~100%FS	Test force resolution 1/500.000 of FS	Maximum speed of piston rise 200mm/min
Displacement Resolution 0.01mm	Compression Plant φ160 mm	Tensile Space 700mm
Max. Compression Space 550mm	Piston stroke 650mm	Weight 3000kg
Power supply 3 phase, 380VAC+10%,50Hz	Humidity Range 10% to 90% non-condensing
