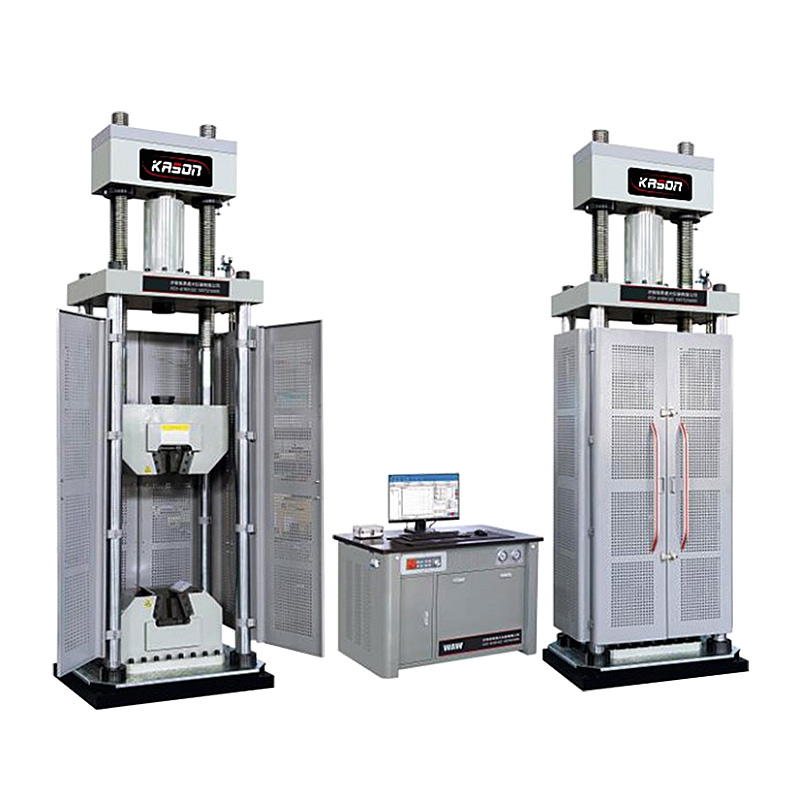

WAW2000A 2000KN/200Ton Computer control hydraulic universal testing machine

Load Capacity

2000KN/200Ton

Calibration standard

IS0 7500 Class 0.5

Testing Load Accuracy

±0.5%

Load Measuring Range

1%~100%FS

HUT-A Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Get a Quote

Learn more

WAW2000A 2000KN/200Ton Computer control hydraulic universal testing machine

WAW2000A 2000KN/200Ton Computer control hydraulic universal testing machine

HUT-A Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Load Capacity:2000KN/200Ton；

Calibration standard:IS0 7500 Class 0.5；

Testing Load Accuracy:±0.5%；

Load Measuring Range:1%~100%FS；

Load Resolution:1/500.000 of FS；

Get a Quote

Product Details

Application:

HUT-A Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Types of specimens and materials:

Ø Metals-(wire, rod, tube, strip, plate, strip) ;

Ø Fasteners (tensile, proof, single and double shear) ;

Ø Construction materials (reinforcement bar, wire, mesh, folding, compression of concrete and components).,etc.

Product parameters

Load Capacity 2000KN/200Ton	Calibration standard IS0 7500 Class 0.5	Testing Load Accuracy ±0.5%
Load Measuring Range 1%~100%FS	Load Resolution 1/500.000 of FS	Testing Speeds 0-50mm/min
Deformation measuring range 1%-100%FS	Compression plate dimensions φ160 mm	Max. Tensile Testing Space 1000mm
Max. Compression Testing Space 800mm	Max. Piston stroke 250mm	Weight 6500kg
Power supply 3 phase, AC380V+10%,50Hz	Humidity Range 10% to 90% non-condensing
