WAW3000A 3000KN/300Ton Computer control hydraulic universal testing machine

Load Capacity

3000KN/300Ton

Calibration standard

IS0 7500 Class 1

Testing Load Accuracy

±1%

Load Measuring Range

2%~100%FS

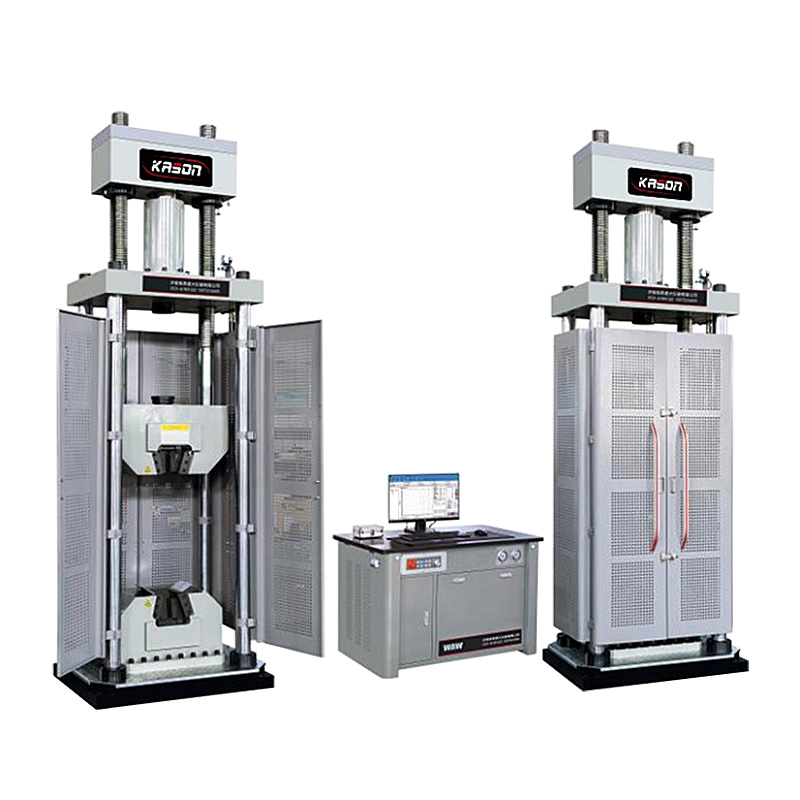

HUT-A Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Get a Quote

Learn more

WAW3000A 3000KN/300Ton Computer control hydraulic universal testing machine

WAW3000A 3000KN/300Ton Computer control hydraulic universal testing machine

HUT-A Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Load Capacity:3000KN/300Ton；

Calibration standard:IS0 7500 Class 1；

Testing Load Accuracy:±1%；

Load Measuring Range:2%~100%FS；

Load Resolution:1/500.000 of FS；

Get a Quote

Product Details

Application:

HUT-A Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Types of specimens and materials:

Ø Metals-(wire, rod, tube, strip, plate, strip) ;

Ø Fasteners (tensile, proof, single and double shear) ;

Ø Construction materials (reinforcement bar, wire, mesh, folding, compression of concrete and components).,etc.

Product parameters

Load Capacity 3000KN/300Ton	Calibration standard IS0 7500 Class 1	Testing Load Accuracy ±1%
Load Measuring Range 2%~100%FS	Load Resolution 1/500.000 of FS	Deformation measuring range 1%~100%FS
Testing Speeds 0-50mm/min	Load frame dimension 2000x1600x4800mm	Max. Tensile Testing Space 1000mm
Displacement control hold accuracy ≤+0.02mm	Max. Piston stroke 300mm	Weight 18000kg
Power supply 3 phase, AC380V+10%,50HZ	Humidity Range 10% to 90% non-condensing
