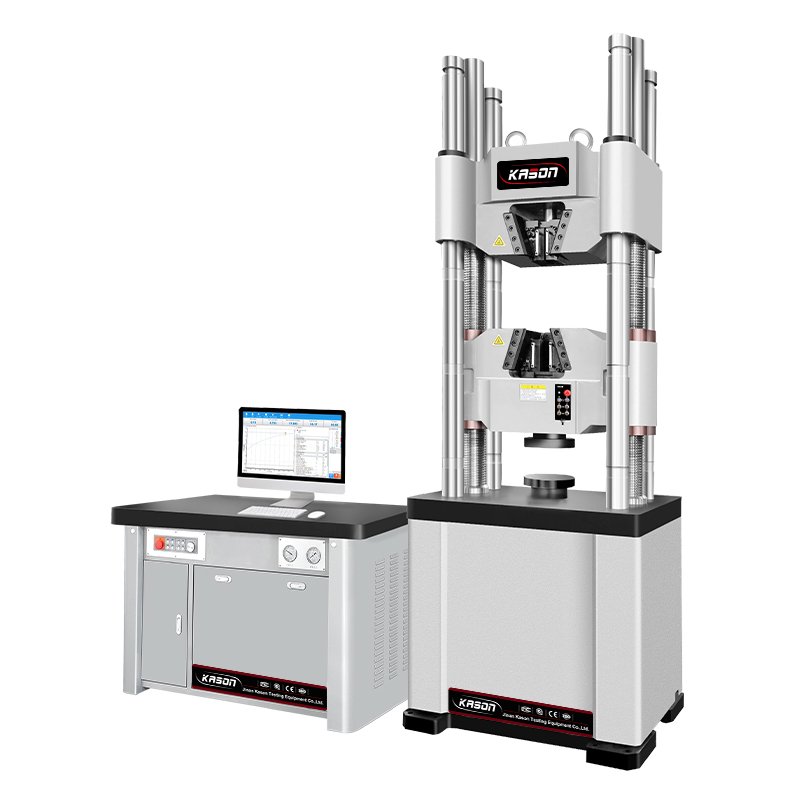

WAW2000E 2000kn/200Ton Computer control hydraulic universal testing machine

Load Capacity

2000kn/200Ton

Calibration standard

IS0 7500 Class 1

Testing Load Accuracy

±1%

Load Measuring Range

1%~100%FS

HUT Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Get a Quote

Learn more

WAW2000E 2000kn/200Ton Computer control hydraulic universal testing machine

WAW2000E 2000kn/200Ton Computer control hydraulic universal testing machine

HUT Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Load Capacity:2000kn/200Ton；

Calibration standard:IS0 7500 Class 1；

Testing Load Accuracy:±1%；

Load Measuring Range:1%~100%FS；

Load Resolution:1/500.000 of FS；

Get a Quote

Product Details

Application:

HUT Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Types of specimens and materials:

1. Metals-(wire, rod, tube, strip, plate, strip) ;

2. Fasteners (tensile, proof, single and double shear) ;

3. Construction materials (reinforcement bar, wire, mesh, folding, compression of concrete and components).,etc.

Product parameters

Load Capacity 2000kn/200Ton	Calibration standard IS0 7500 Class 1	Testing Load Accuracy ±1%
Load Measuring Range 1%~100%FS	Load Resolution 1/500.000 of FS	Testing Speeds 0-85mm/min
Deformation measuring range 1%-100%FS	Compression plate dimensions φ160 mm	Max. Tensile Testing Space 1250mm
Max. Compression Testing Space 850mm	Max. Piston stroke 250mm	Weight 5600kg
Power supply 5kw,3 phase,AC380V+10%6,50H2	Humidity Range 10% to 90% non-condensing
