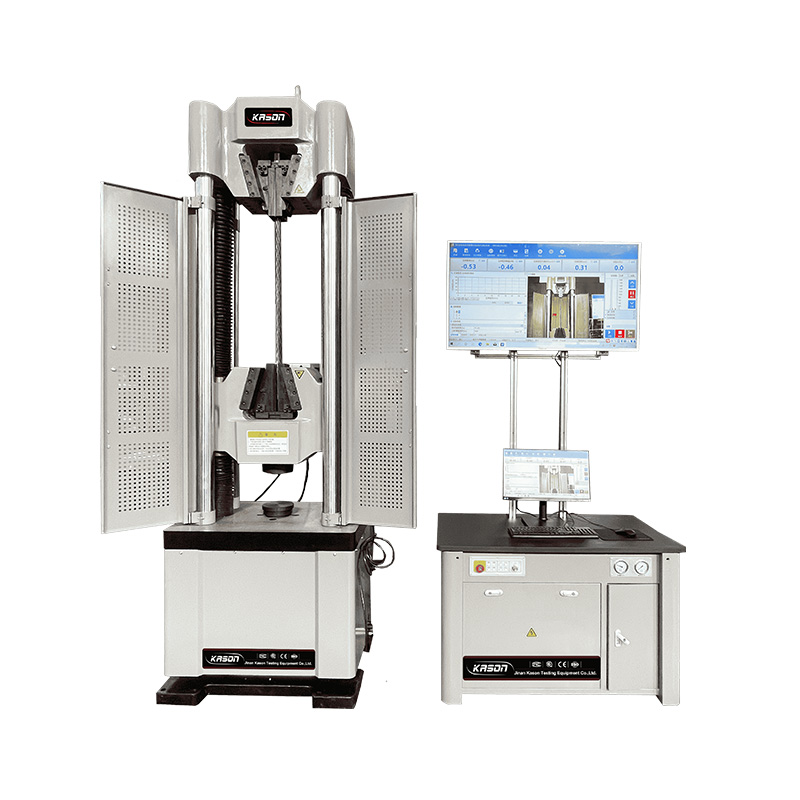

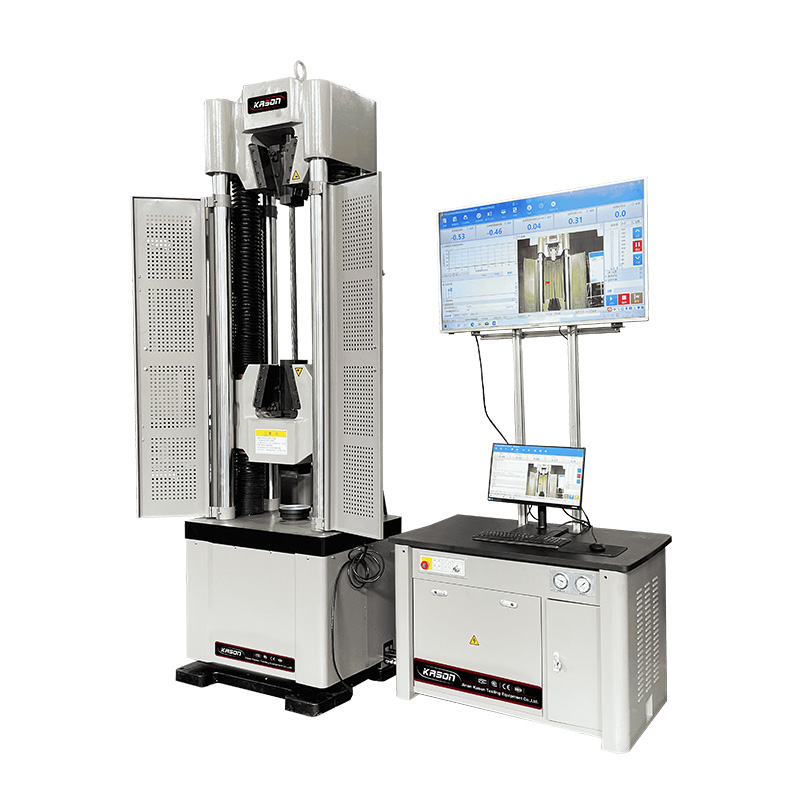

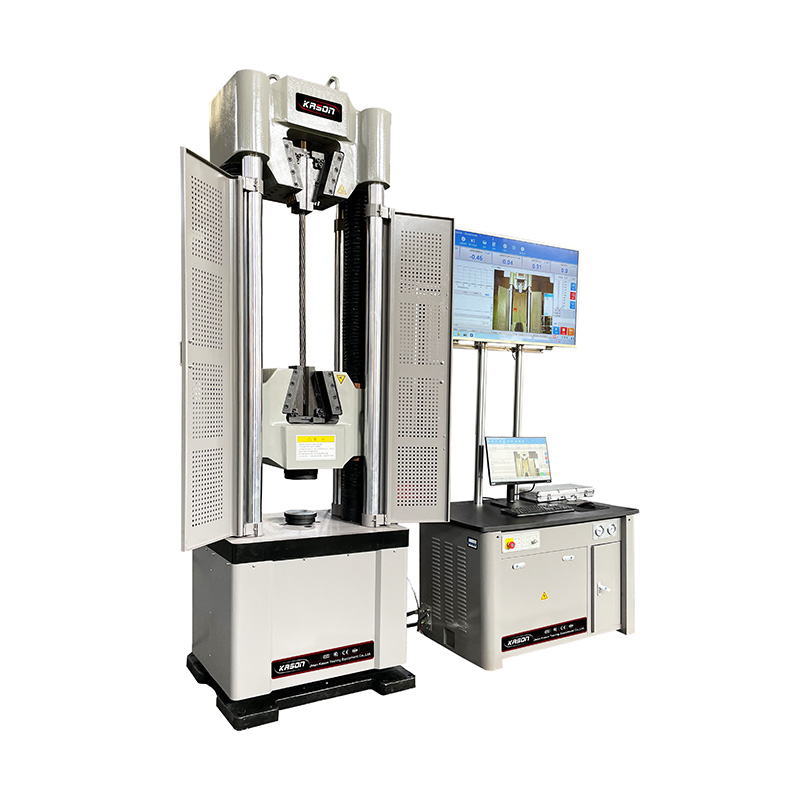

WAW1200E 1200Kn/120Ton Computer control hydraulic universal testing machine

Load Capacity

1200Kn/120Ton

Calibration standard

IS0 7500 Class 1

Testing Load Accuracy

±1%

Load Measuring Range

1%~100%FS

HUT Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Get a Quote

Learn more

WAW1200E 1200Kn/120Ton Computer control hydraulic universal testing machine

WAW1200E 1200Kn/120Ton Computer control hydraulic universal testing machine

HUT Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Load Capacity:1200Kn/120Ton；

Calibration standard:IS0 7500 Class 1；

Testing Load Accuracy:±1%；

Load Measuring Range:1%~100%FS；

Load Resolution:1/500.000 of FS；

Get a Quote

Product Details

Application:

HUT Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Types of specimens and materials:

1. Metals-(wire, rod, tube, strip, plate, strip) ;

2. Fasteners (tensile, proof, single and double shear) ;

3. Construction materials (reinforcement bar, wire, mesh, folding, compression of concrete and components).,etc.

Product parameters

Load Capacity 1200Kn/120Ton	Calibration standard IS0 7500 Class 1	Testing Load Accuracy ±1%
Load Measuring Range 1%~100%FS	Load Resolution 1/500.000 of FS	Displacement Resolution 0.0025mm
Deformation measuring range 1%~100%FS	Compression plate dimensions φ160 mm	Max. Tensile Testing Space 930mm
Max. Compression Testing Space 650mm	Max. Piston stroke 250mm	Weight 3600kg
Power supply 2.75kW,3 phase,AC380V+10%,50Hz	Humidity Range 10% to 90% non-condensing
