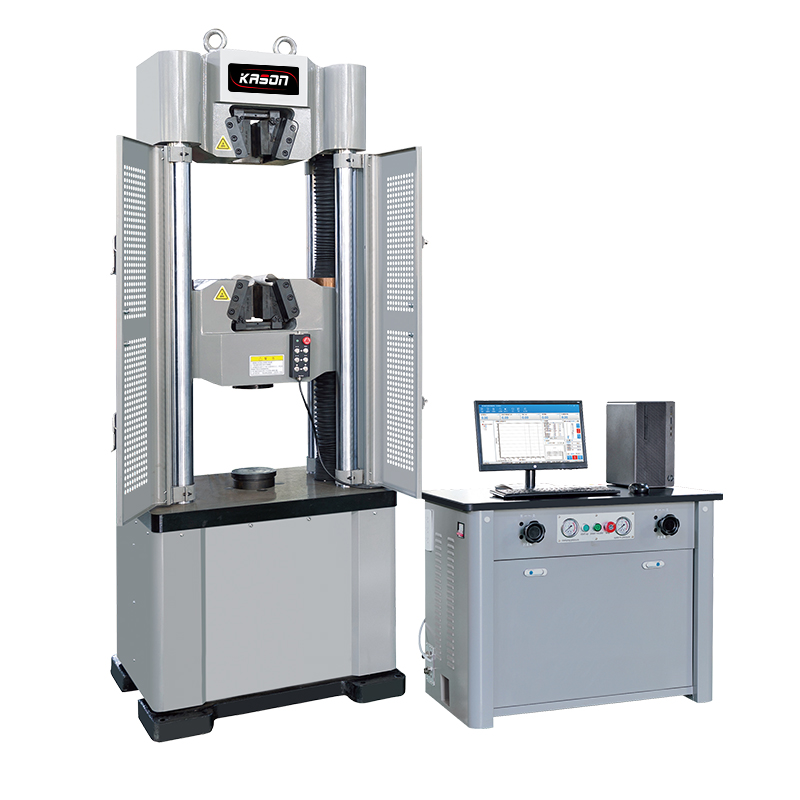

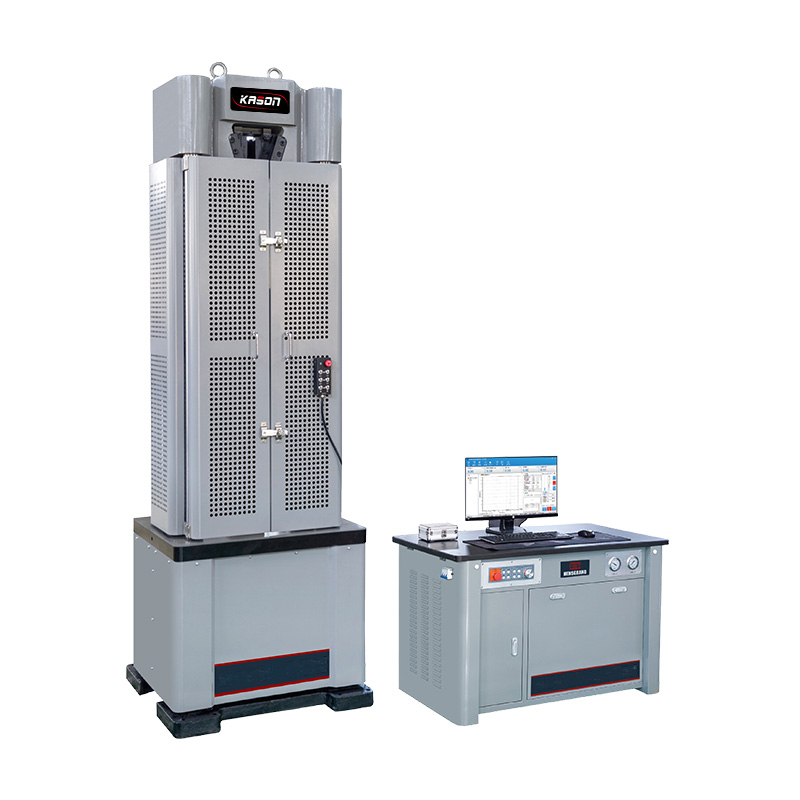

WAW100D 100KN/10Ton Computer control hydraulic universal testing machine

WAW Series Computer-Controlled Electro-hydraulic Servo Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing strength.

Load Capacity:100KN/10Ton;

Calibration standard:Class 1/ Class 0.5(optional);

Testing Load Accuracy:<士 1%10.5;

Load Measuring Range:2%~100%FS;

Load Resolution:1/350000;

Product Details

Application:

WAW Series Computer-Controlled Electro-hydraulic Servo Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing strength. It is capable of testing the characters of materials on physical & technology properties. It is simple, easy to operate and widely used in works, laboratories and high schools for material properties research and quality control. Equipped with the computer & Software & printer, it can display, record, process and print the test results, and control test procedures as per the set program and can draw test curves automatically in real time.

Product parameters

Load Capacity

100KN/10Ton

Calibration standard

Class 1/ Class 0.5(optional)

Testing Load Accuracy

<士 1%10.5

Load Measuring Range

2%~100%FS

Load Resolution

1/350000

Deformation Measurement Range

2%~100%FS

Displacement Resolution

0.001mm

Compression Platen Size

φ160 mm

Max. Tensile Testing Space

700mm

Max. Compression Testing Space

500mm

Max. Piston stroke

200mm

Weight

1500kg

Power supply

3-phase, AC380V,50Hz (Can Be Customized)

Overall Dimensions (L*W*H)

765*705*1925mm
