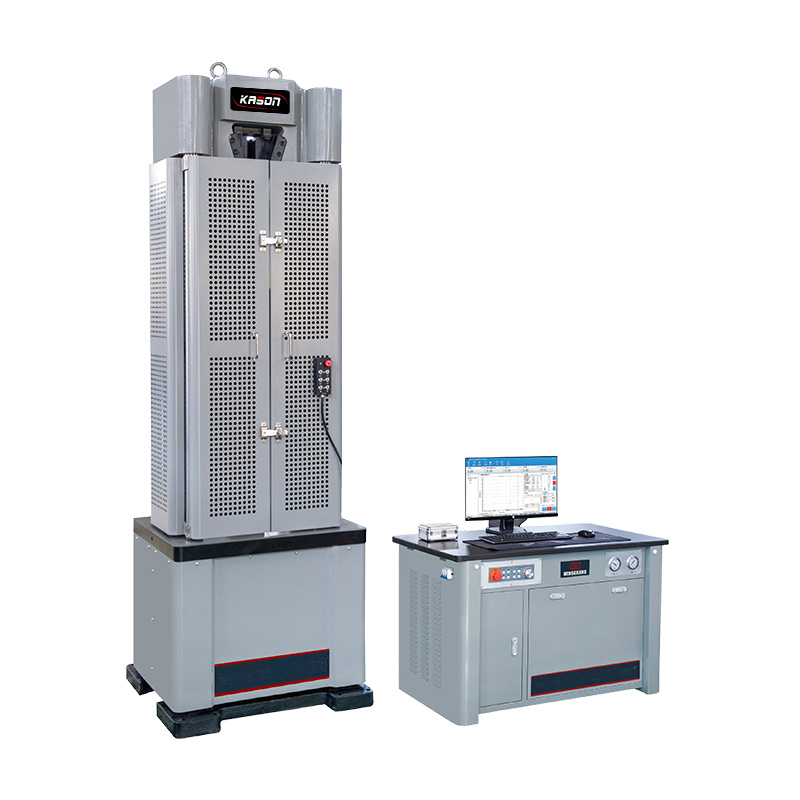

WAW1000E 1000kN/100Ton Computer control hydraulic universal testing machine

Load Capacity

1000kN/100Ton

Calibration standard

IS0 7500 Class 1

Testing Load Accuracy

±0.5%

Load Measuring Range

1%~100%FS

HUT Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Get a Quote

Learn more

WAW1000E 1000kN/100Ton Computer control hydraulic universal testing machine

WAW1000E 1000kN/100Ton Computer control hydraulic universal testing machine

HUT Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Load Capacity:1000kN/100Ton；

Calibration standard:IS0 7500 Class 1；

Testing Load Accuracy:±0.5%；

Load Measuring Range:1%~100%FS；

Load Resolution:1/500.000 of FS；

Get a Quote

Product Details

Application:

HUT Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Types of specimens and materials:

1. Metals-(wire, rod, tube, strip, plate, strip) ;

2. Fasteners (tensile, proof, single and double shear) ;

3. Construction materials (reinforcement bar, wire, mesh, folding, compression of concrete and components).,etc.

Product parameters

Load Capacity 1000kN/100Ton	Calibration standard IS0 7500 Class 1	Testing Load Accuracy ±0.5%
Load Measuring Range 1%~100%FS	Load Resolution 1/500.000 of FS	Force control controls the speed range 120mm/min
Deformation measuring range 0.001%-5%FS/s	Compression plate dimensions φ160 mm	Max. Tensile Testing Space 980mm
Max. Compression Testing Space 700mm	Max. Piston stroke 250mm	Weight 2600kg
Power supply 2.75kW,3 phase,AC380V+10%,50Hz	Humidity Range 10% to 90% non-condensing
