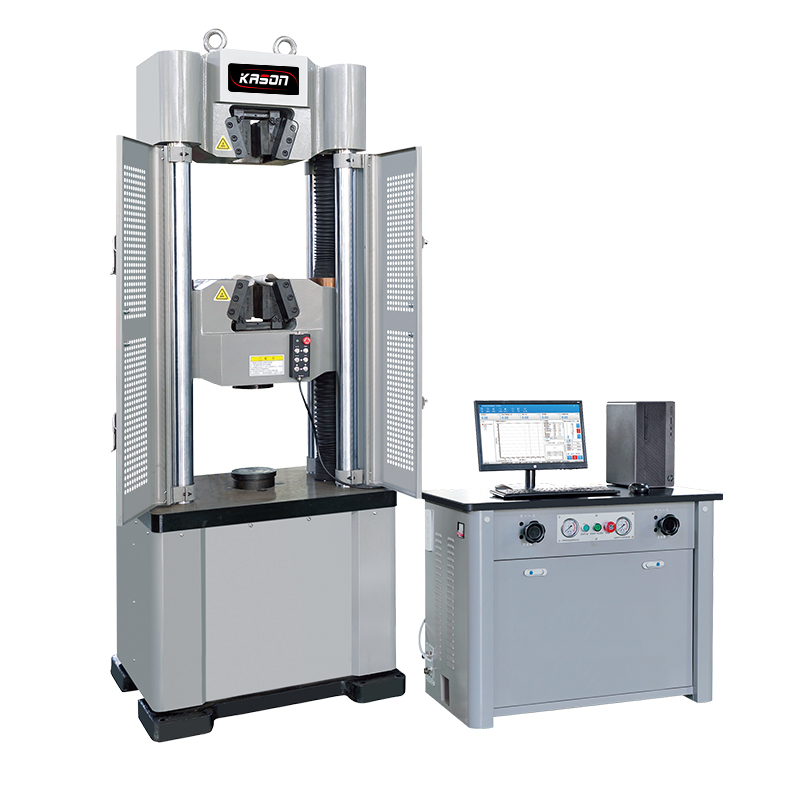

WEW300D 300kn/30Ton Computer hydraulic universal testing machine

Load Capacity

300kn/30Ton

Calibration standard

IS0 7500 Class 1

Testing Load Accuracy

±1%

Load Measuring Range

2%~100%FS

HUT Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Get a Quote

Learn more

WEW300D 300kn/30Ton Computer hydraulic universal testing machine

WEW300D 300kn/30Ton Computer hydraulic universal testing machine

HUT Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Load Capacity:300kn/30Ton；

Calibration standard:IS0 7500 Class 1；

Testing Load Accuracy:±1%；

Load Measuring Range:2%~100%FS；

Load Resolution:1/500.000 of FS；

Get a Quote

Product Details

Application:

HUT Series Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Types of specimens and materials:

Ø Metals:wire, rod, tube, strip, plate, strip

Ø Fasteners:tensile, proof, single and double shear

Ø Construction materials:reinforcement bar, wire, mesh, folding, compression of concrete and components.,etc.

Product parameters

Load Capacity 300kn/30Ton	Calibration standard IS0 7500 Class 1	Testing Load Accuracy ±1%
Load Measuring Range 2%~100%FS	Load Resolution 1/500.000 of FS	Manual displacement control speed rang 0~300mm/min
Deformation measuring range 1%-100%FS	Compression plate dimensions φ160 mm	Max. Tensile Testing Space 780mm
Max. Compression Testing Space 550mm	Max. Piston stroke 200mm	Weight 1450kg
Power supply 2.75kW,3 phase,AC380V+10%,50Hz	Humidity Range 10% to 90% non-condensing
