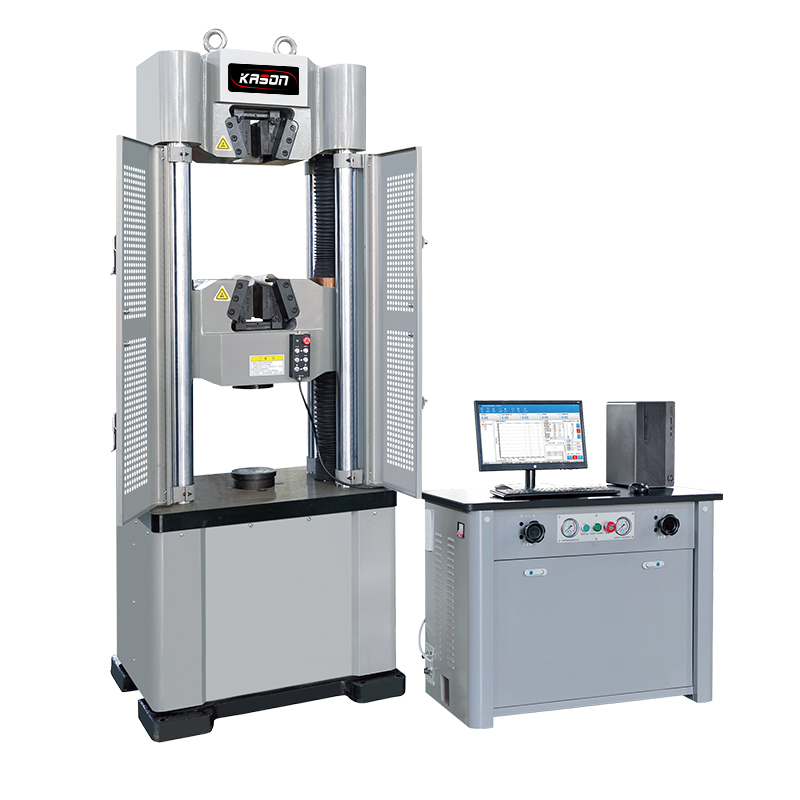

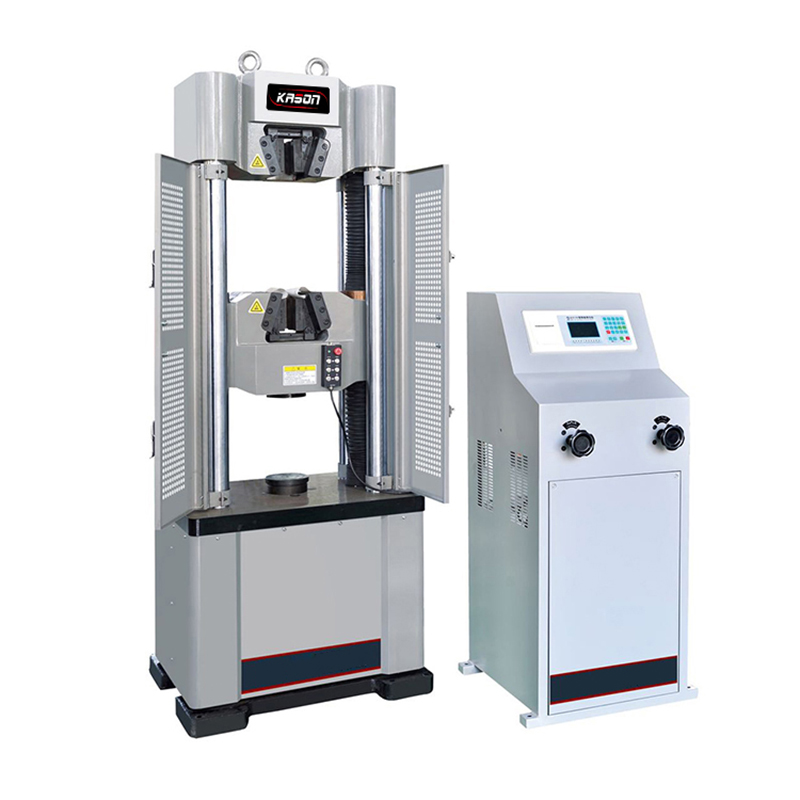

WE600D 600KN/60Ton Digtal display hydraulic universal testing machine

Load Capacity

600KN/60Ton

Calibration standard

IS0 7500 Class 1

Testing Load Accuracy

±1

Load Measuring Range

2%~100%FS

WE Series Digital Display Hydraulic Universal Testing MachineUniversal Testing Machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing testing.

Get a Quote

Learn more

WE600D 600KN/60Ton Digtal display hydraulic universal testing machine

WE600D 600KN/60Ton Digtal display hydraulic universal testing machine

Load Capacity:600KN/60Ton；

Calibration standard:IS0 7500 Class 1；

Testing Load Accuracy:±1；

Load Measuring Range:2%~100%FS；

Load Resolution:0.01kN；

Get a Quote

Product Details

Types of specimens and materials:

Ø Metals:wire, rod, tube, strip, plate, strip

Ø Fasteners:tensile, proof, single and double shear

Ø Construction materials:reinforcement bar, wire, mesh, folding, compression of concrete and components.,etc.

Product parameters

Load Capacity 600KN/60Ton	Calibration standard IS0 7500 Class 1	Testing Load Accuracy ±1
Load Measuring Range 2%~100%FS	Load Resolution 0.01kN	Lower beam to adjust speed 120mm/min
Accuracy of Stress Rate Control ±0.5%	Compression Platen Size φ160 mm	Max. Tensile Testing Space 800mm
Max. Compression Testing Space 650mm	Max. Piston stroke 250mm	Weight 1850kg
Power supply 3 phase, AC380V+10%,50Hz	Humidity Range 10% to 90% non-condensing
