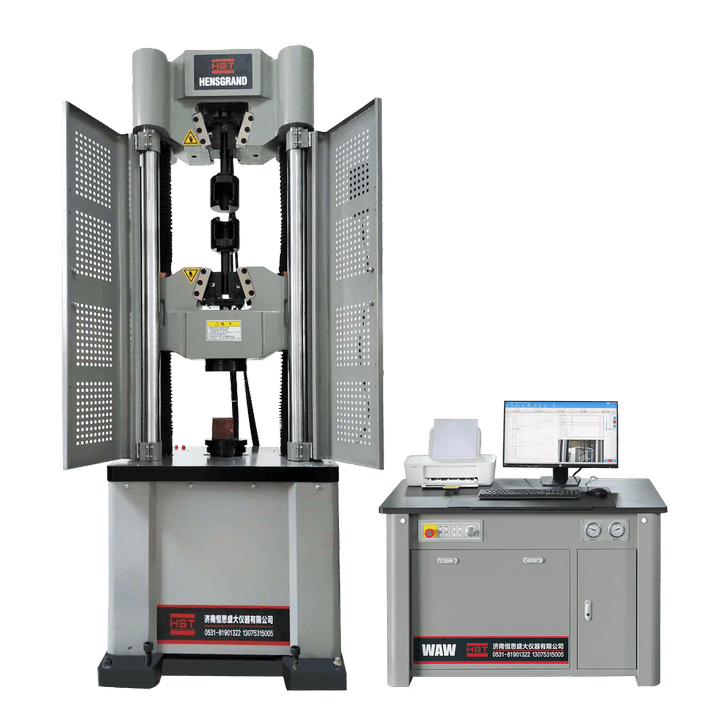

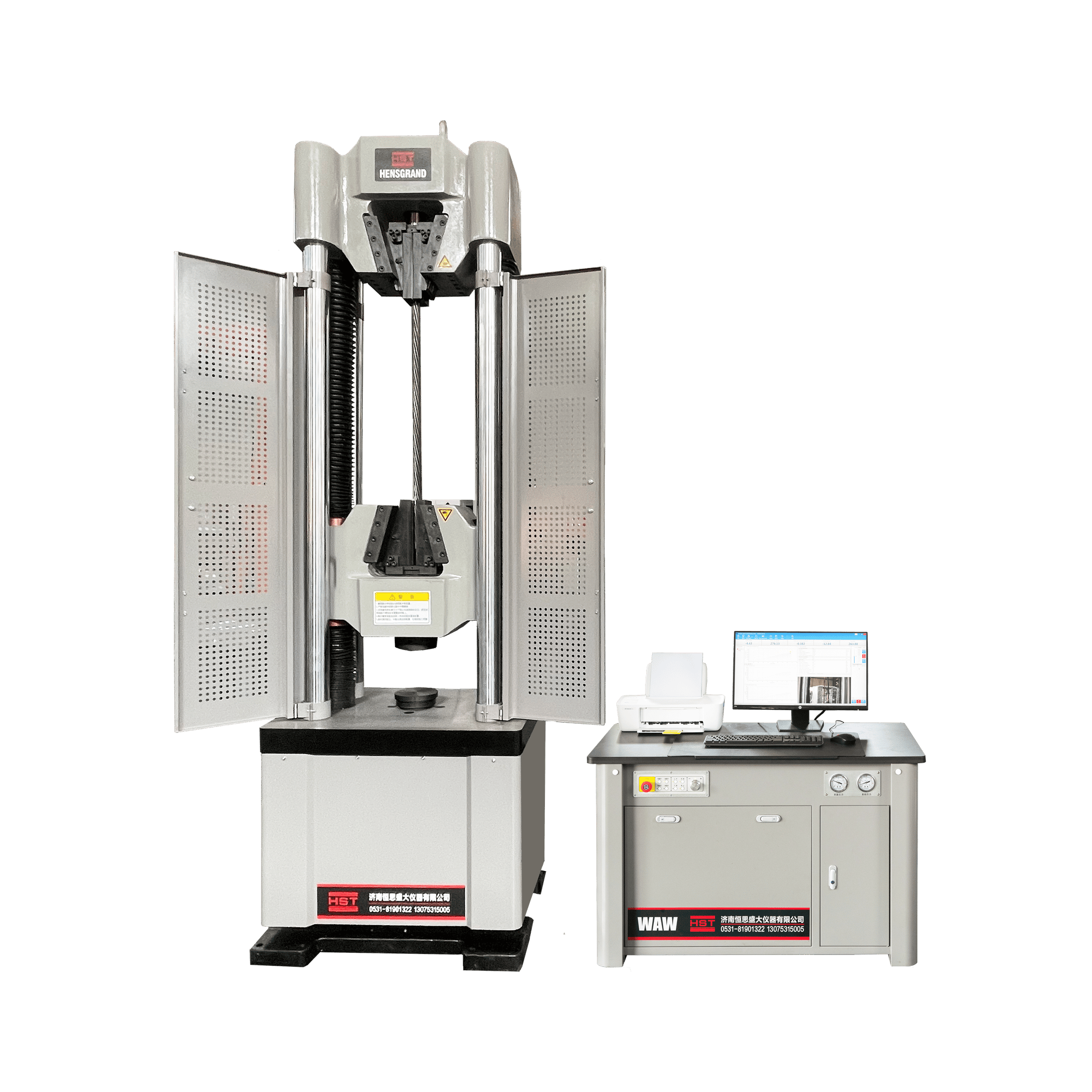

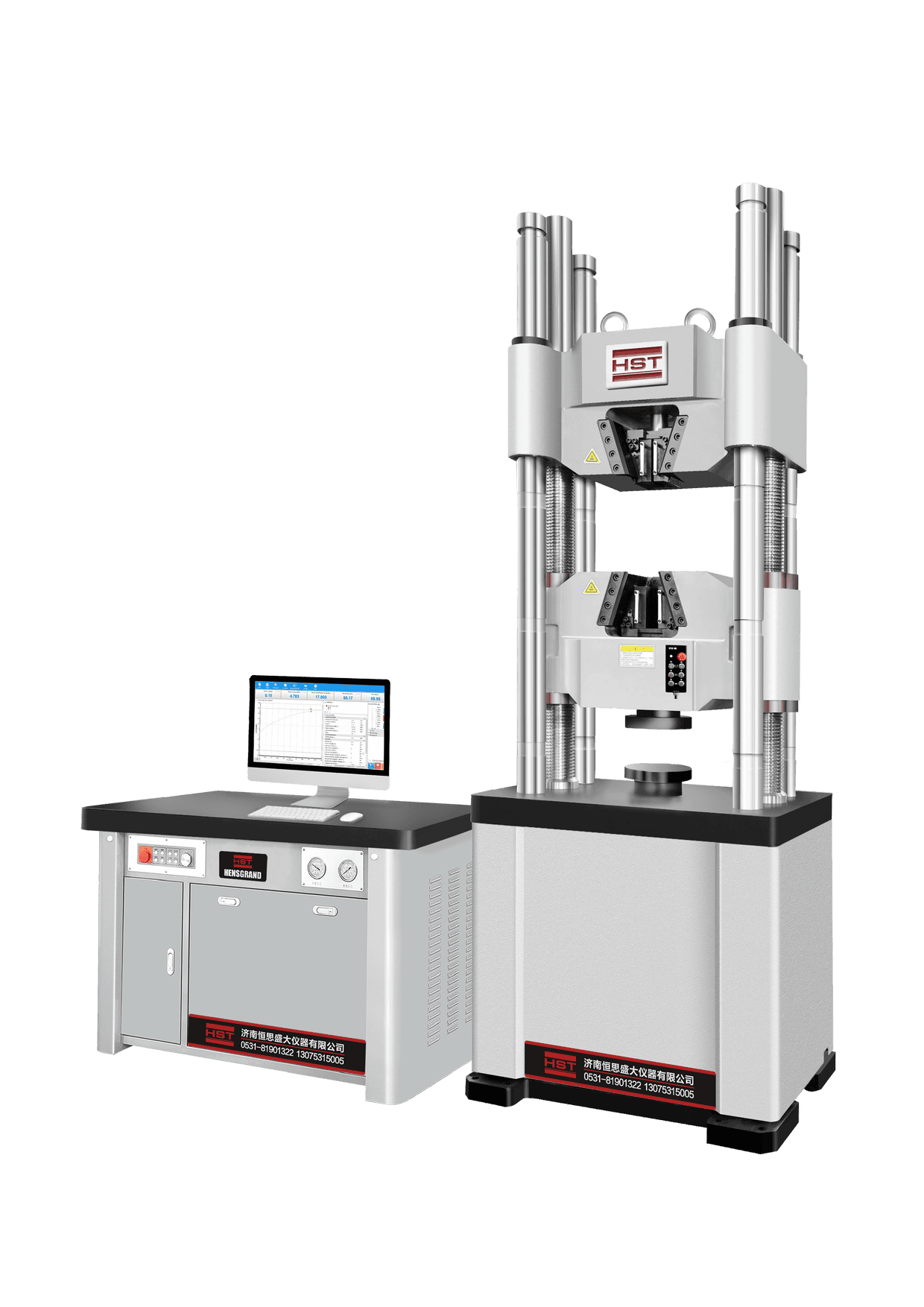

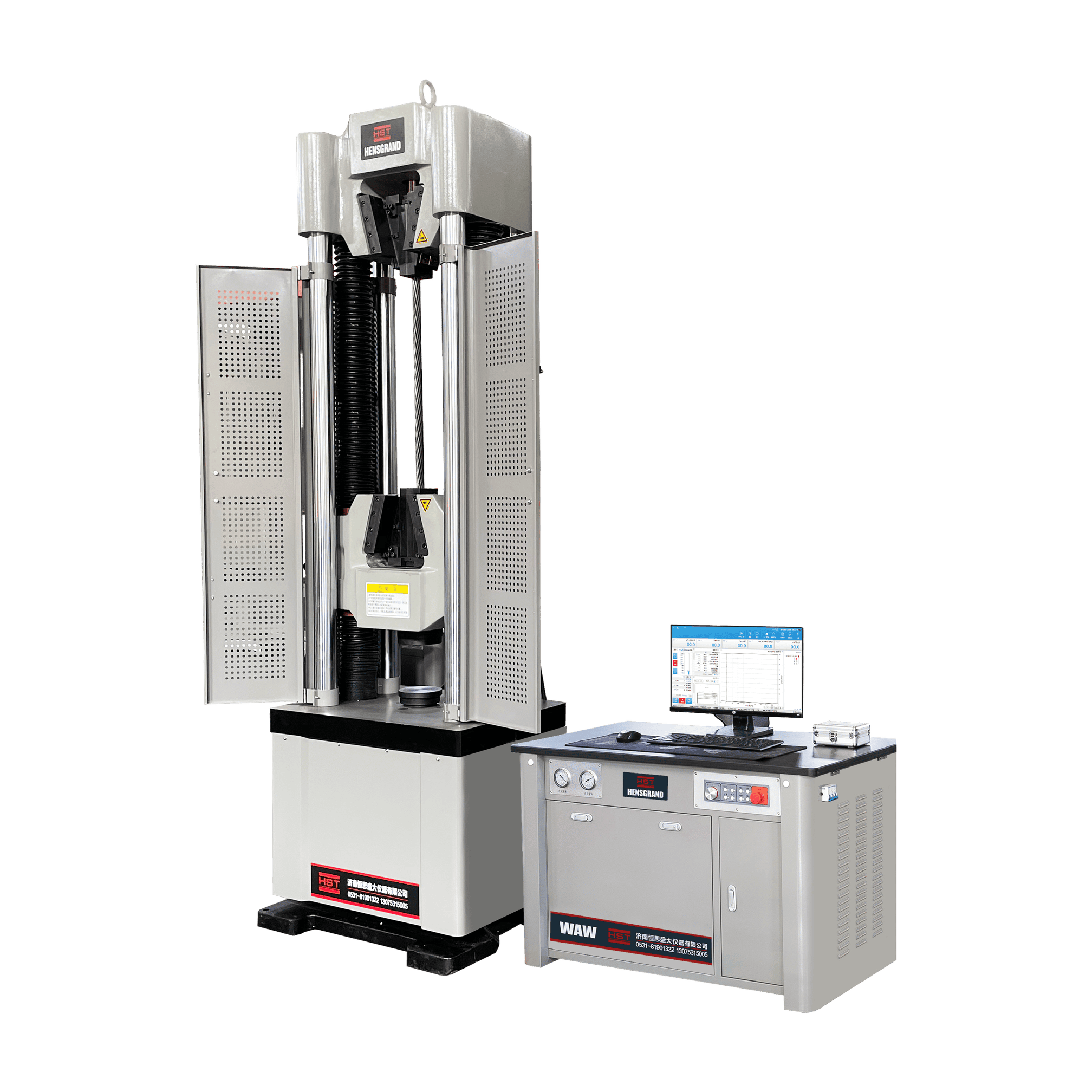

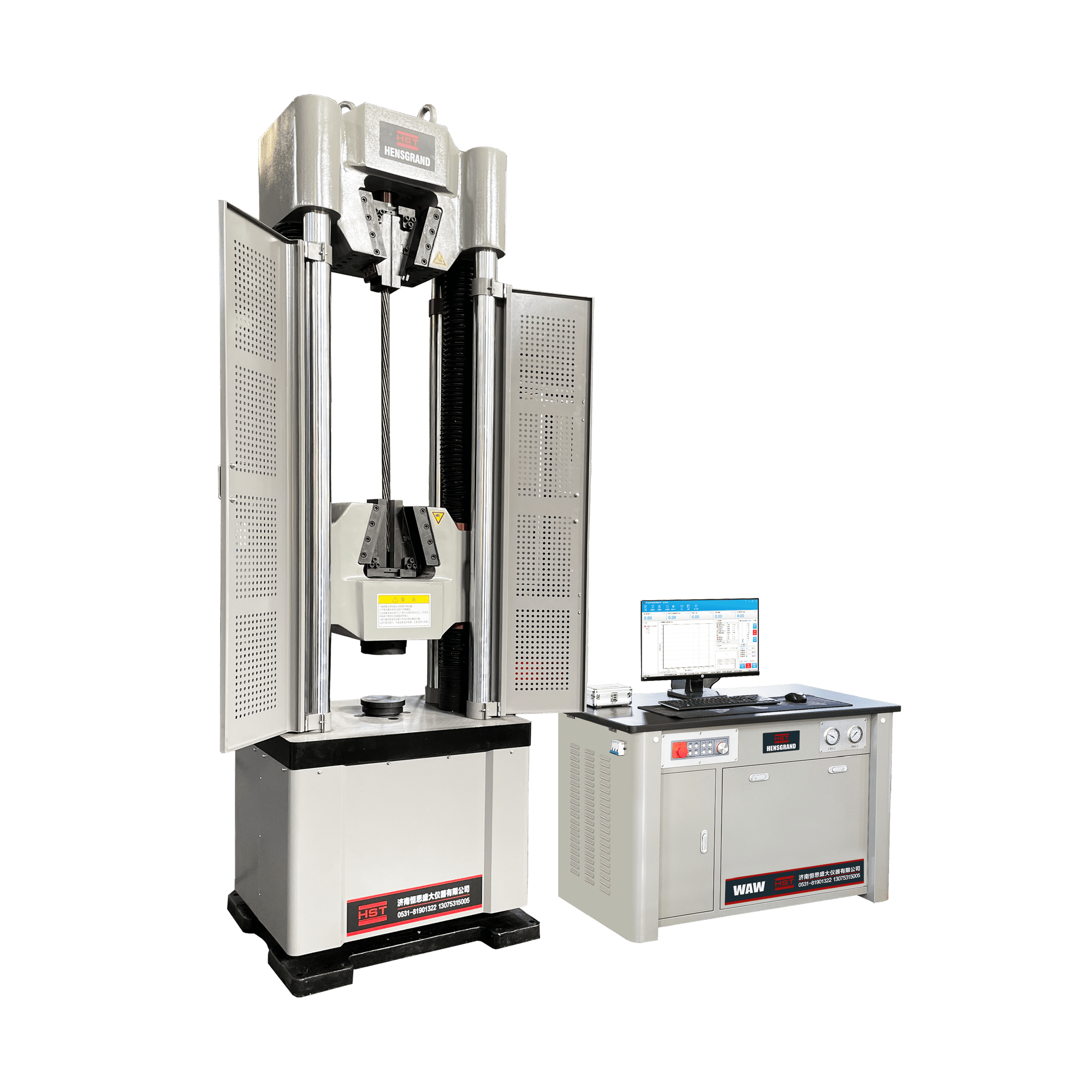

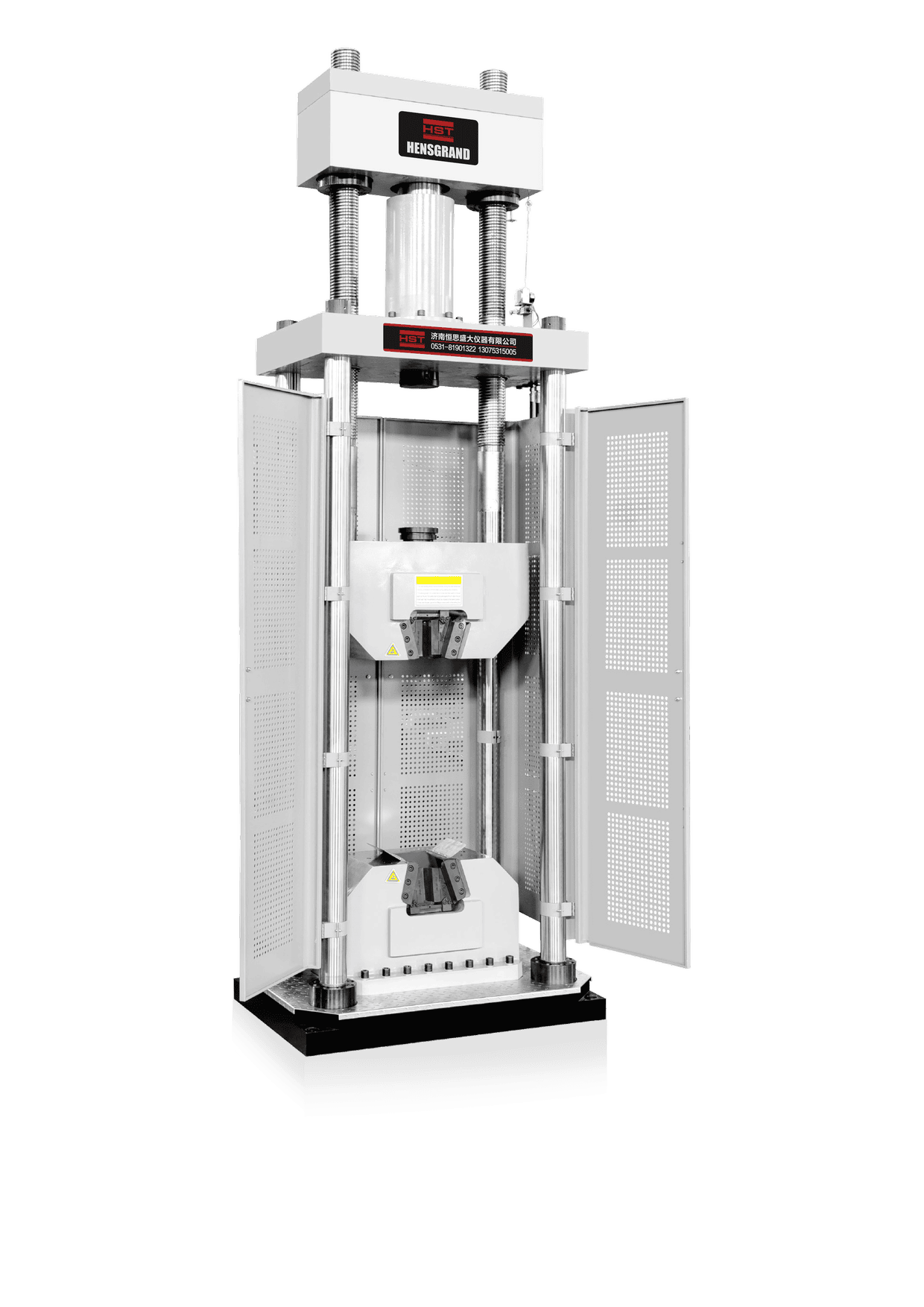

WAW-1000E microcomputer controlled electro-hydraulic servo universal testing machine (level 0.5)

WAW-1000E
Microcomputer controlled electro-hydraulic servo universal testing machine (level 0.5)
1. Product use
This machine is an important instrument and equipment for testing the physical properties, mechanical properties, technological properties, structural properties and internal and external defects of various materials and their products. It can realize tensile, compression, bending, shear and other types of tests on metallic or non-metallic materials, and can automatically obtain the tensile strength, yield strength, specified non-proportional elongation strength, elastic modulus and other performance indicators of the measured materials. Closed-loop control such as constant rate loading, constant rate deformation, constant rate displacement, and constant rate strain can be completed.
This machine is accurate in testing, powerful in function, easy to operate, stable and reliable. It is widely used in universities, scientific research institutes, testing institutions, aerospace, military industry, metallurgy, machinery manufacturing, transportation construction, construction and building materials and other industries for precision material research, material analysis, material development and quality control. Process qualification performance verification tests of materials or products can be performed.
2. Technological innovation
• New external independent controller---adding an independent external manual control unit provides a new solution for the measurement, control and operation of the testing machine. USB data transmission fully supports notebook computers, tablet computers and desktop computers; It is an important part of leading the development of testing machine technology;
• Multifunctional handheld controller---can control the rise and fall of the moving beam and oil cylinder, the clamping and loosening of the jaws, and also has the emergency stop function of the oil pump, making it more convenient to use sample clamping;
• Equipment operation monitoring system---it has phase sequence, phase loss self-check indication functions, electrical overcurrent, overload and other protection functions, making the equipment operation safe and reliable;
• The upper and lower jaw seats of the main machine adopt a built-in clamping method---the sample clamping is more stable and the sample fracture alignment is better;
• An elastic shock absorption mechanism is installed at the lower part of the lead screw---effectively reduces the impact caused by sample fracture and reduces noise;
• Add a flexible dust cover outside the lead screw to prevent foreign objects from entering, increase the durability of the lead screw and transmission mechanism, and improve the aesthetics of the whole machine;

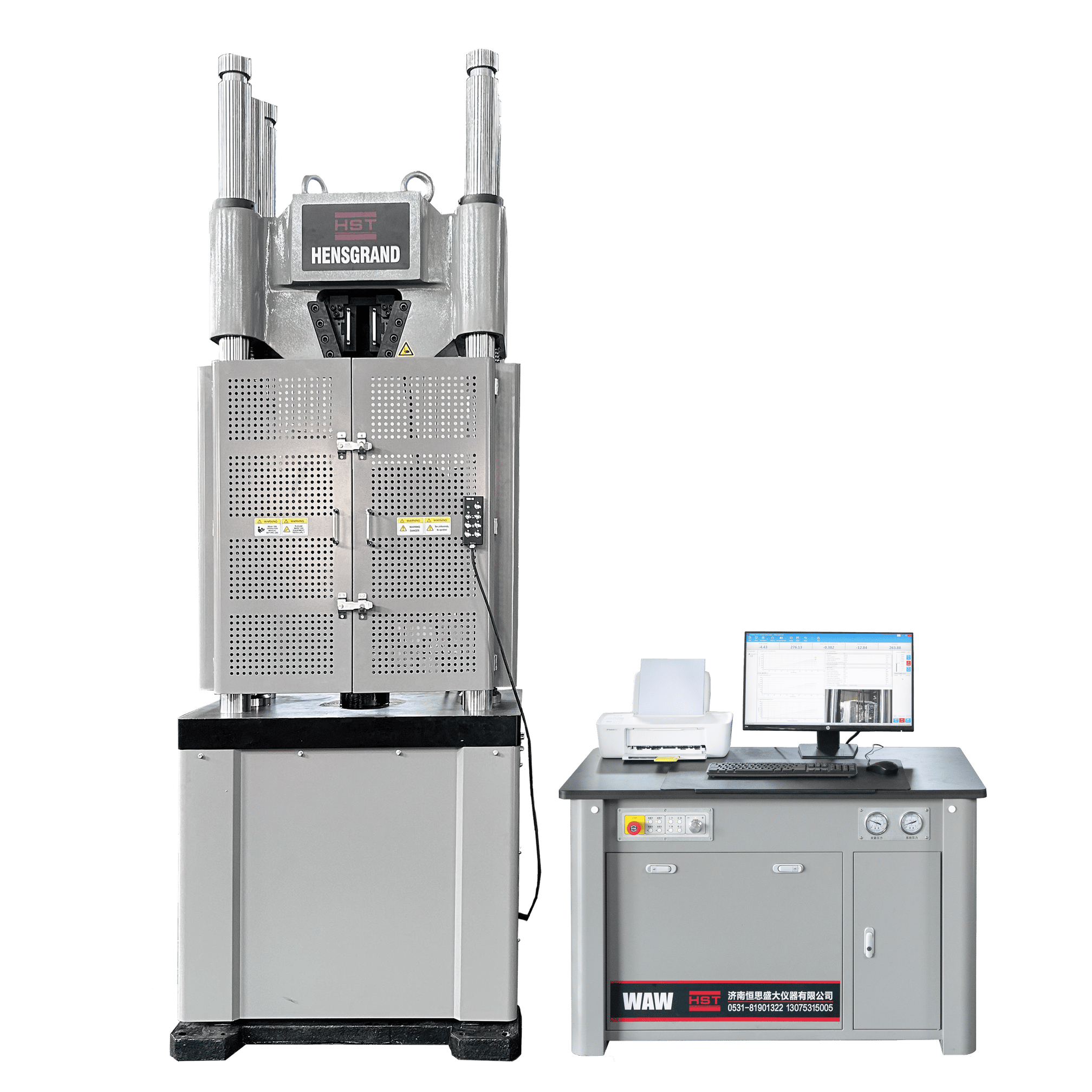

• Safety protective cover---Three-sided cold-rolled steel plate punched safety protective cover prevents foreign objects from flying out during the test. It not only improves the protection level, but also facilitates real-time observation by operators, effectively ensuring the personal safety of experimenters.
• The servo pump station adopts cartridge valve pressure differential follow-up technology-energy-saving, environmentally friendly, safe and reliable, and reduces system heat; At the same time, the clamping force increases with the increase of the test force, and the sample clamps firmly.
3. Electrical measurement and control part
(1) External independent controller
The external independent controller is developed by our company for many years-a new generation of special controller for static testing machines; It integrates measurement, control and transmission functions, highly integrates signal acquisition, signal amplification, data transmission and servo valve drive units, and adds an external manual control unit to provide a new solution for the measurement, control and operation of the testing machine. Solution, USB data transmission fully supports notebook computers, tablet computers and desktop computers; It is an important part of leading the development of testing machine technology.
(2) Measurement and control software of universal testing machine
The measurement and control software of the universal testing machine adopts DSP technology and neuron adaptive control algorithm to realize various closed-loop control modes such as constant rate test force, constant rate cylinder displacement, constant rate strain, etc. The control modes can be arbitrarily combined and smoothly switched. It has a network interface, which can realize data networking and remote control functions.
(3) Equipment operation monitoring system
The equipment operation monitoring system is a subversive improvement of the original high-current circuit by our company. It adds phase sequence, phase loss self-check indication functions, electrical overcurrent, overload and other protection functions to make the equipment operation safe and reliable.

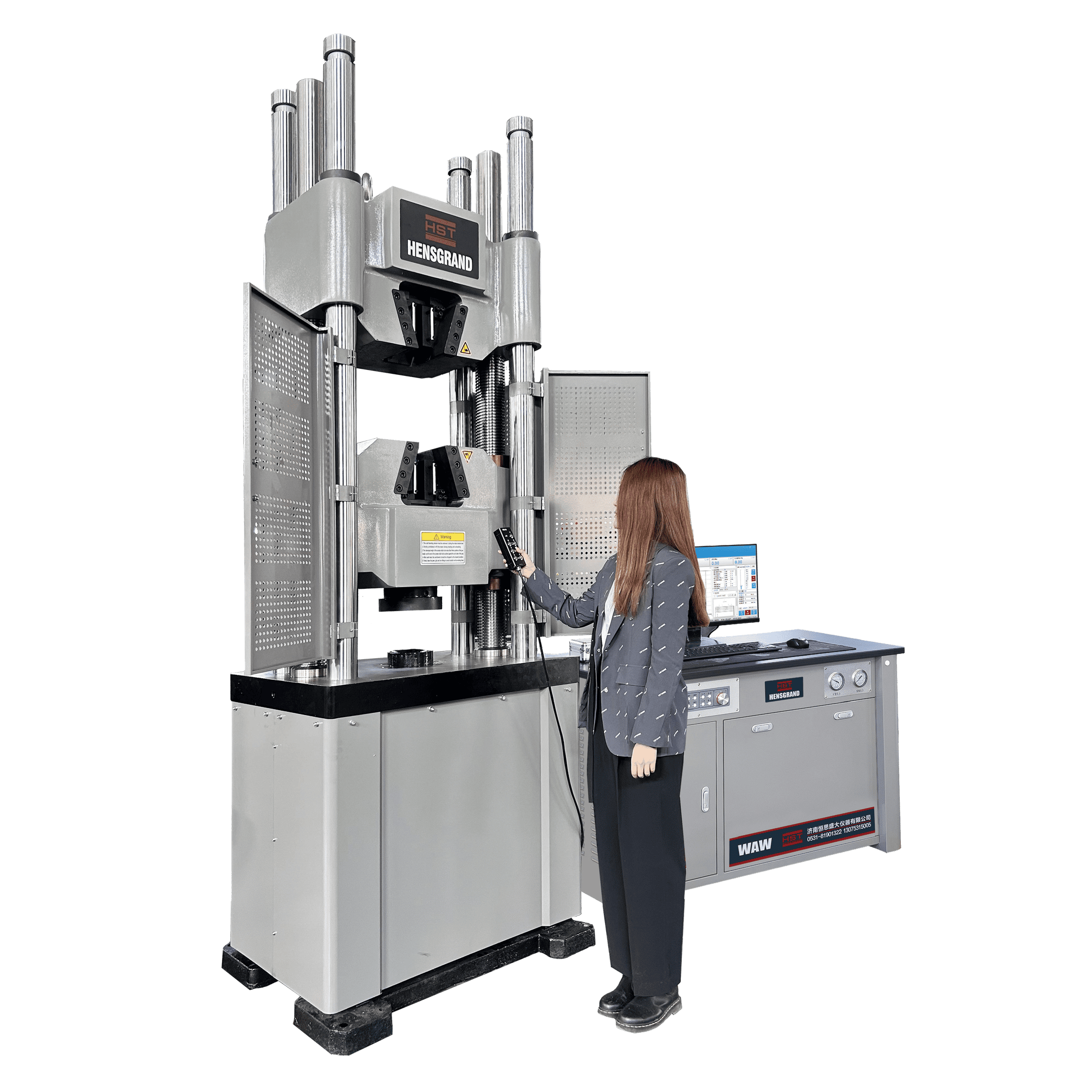

(4) External handheld control box
It can control the rise and fall of the moving beam and oil cylinder, the clamping and loosening of the jaws, and has the equipment emergency stop function, which makes the sample clamping more convenient and the operation simpler.
(5) Pressure monitoring instruments
Real-time display of the differential pressure starting pressure, system pressure and clamping pressure of the servo oil source to ensure the normal operation of the equipment.
4. Applicable standards
• GB/T 2611-2007 "General Technical Requirements for Testing Machines";
• JB/T 7406.1-1994 "Testing Machine Terminology Material Testing Machine";
• GB/T 16826-2008 "Electro-hydraulic servo universal testing machine";
• GB/T 16825.1-2008 "Inspection of static uniaxial testing machines Part 1: Inspection and calibration of force measurement systems of tensile and/or pressure testing machines";
• GB/T 22066-2008 "Evaluation of Computer Data Acquisition System of Static Single-axis Testing Machine";
• JJG 139-2014 "Tensile, Pressure and Universal Material Testing Machine";
• JB/T 6146-2007 "Technical Conditions for Extensometer";
• JB/T 6147-2007 "Technical requirements for testing machine packaging, packaging marking, storage and transportation";
• GB/T 228.1-2010 "Tensile test of metal materials Part 1: Room temperature test method";
• GB/T 7314-2017 "Room Temperature Compression Test Method for Metal Materials";
• GB/T 232-2010 "Bending Test Method for Metal Materials";
• ASTM A370 Standard Test Methods and Definitions for Mechanical Properties Testing of Steel Products.
5. Main technical parameters
(1) Host parameters:
• Number of columns: 6 columns (4 columns, 2 screws);
• Maximum compression/stretch spacing (mm): 700/950;
• Column center spacing (mm): 560;
• Column diameter (mm): φ72;
• Lead screw pitch (mm): Tr80 × 8;
• Table size (mm): 810 × 600 × 100;
• Vertical height of the workbench from the ground (mm): 650;
• Piston diameter (mm): Φ230;
• Maximum piston stroke (mm): 250;
• Loading rate range: 0.02%-2% FS;
• Maximum no-load moving speed of piston (mm/min): 100;
• Maximum speed of beam adjustment (mm/min): about 220;
• Beam moving motor power (kW): 0.4.
(2) Measurement parameters:
• Maximum test force (kN): 1000;
• Testing machine level: 0.5 level;
• Effective measurement range of test force: 2%-100% F.S;
• Test force resolution: 1/500000 of the full scale (there is only one resolution in the full scale, no grading);
• Test force measurement accuracy: better than ≤ ± 1%;
• Displacement measurement resolution: 0.01 mm;
• Displacement measurement accuracy: better than ≤ ± 0. 5%;
• Deformation measurement range: 1%-100% FS;
• Deformation measurement resolution: 1/500000 of the full scale (there is only one resolution in the full scale, no grading);
• Deformation measurement accuracy: better than ≤ ± 0. 5%.
(3) Control parameters:
• Force control control speed range: 0.001% ~ 5% FS/s;
• Force control speed control accuracy: better than ≤ ± 0. 5% at 0.001% ~ 1% FS/s; Better than ≤ ± 0.2% when 1% ~ 5% FS/s;
• Force control retention accuracy: ± 0. 002% F.S;
• Deformation control control speed range: 0.001% ~ 5% FS/s;
• Deformation control speed control accuracy: better than ± 0. 5% when 0.001% ~ 1% FS/s; Better than ± 0. 2% at 1% ~ 5% FS/s;
• Deformation control retention accuracy: ≤ ± 0. 002% F.S;
• Displacement control control speed range: 0.1 ~ 100mm/min;
• Displacement control speed control accuracy: ≤ ± 0. 2%;
• Displacement control holding accuracy: ≤ ± 0. 02 mm;
• Control methods: force closed-loop control, deformation closed-loop control, displacement closed-loop control.
(4) Servo oil source parameters:
• Main system system pressure (Mpa): 25;
• Maximum flow rate of oil pump (L/min): 4;
• Oil filter oil filtration accuracy (μm): 10;
• Main oil pump motor power (kW): 2.2;
• Height of worktop from floor (mm): 750;
• Worktop material and color: solid psychological board, black;
• Fuel tank volume (L): 60.
(5) Attached parameters:
• Clamping method: built-in wedge hydraulic automatic clamping;
• Jaw overall dimensions (mm): H 100 × W 100;
• Circular specimen clamping range (mm): Φ13-Φ26; Φ26-Φ45; Φ45-Φ60;
• Plate specimen clamping thickness (mm): 0-20, 20-40;
• Maximum clamping width of plate specimen (mm): 100;
• Upper and lower pressure plate size (mm): Φ160.
(6) Complete machine parameters:
• Main unit overall dimensions (mm): 830 × 720 × 2160;
• Overall dimensions of oil source (mm): 1200 × 680 × 750;
• Complete machine weight (kg): approximately 2450;
• Power (kW): 2.75;
• Power supply: three-phase five-wire system, 380V/50Hz or 220V/60Hz.

8. Service and guarantee:
(1) After-sales service
• The company has a dedicated customer service department and service hotline to accept users' inquiries and complaints at any time;
• The company provides a one-year warranty and lifetime maintenance service for products; Will call or visit customers from time to time to understand the usage and operation of products, and guide the maintenance and maintenance of equipment;
• You can communicate with our company's technical personnel at any time to answer questions and solve users' product failures and difficult problems;
• We provide complete operation manuals, equipment operation videos, equipment maintenance videos and other relevant information.
(2) Use and maintenance
• Operators must carefully read the host instructions, software instructions and test standards; Follow the operation process and operate in the correct way;
• When testing every day, preheat the equipment for 10 minutes after starting it, especially when the temperature is low in winter; After the test, shut down the machine in the correct sequence and cut off all power supplies;
• Operators should clean the iron slag left on the jaw clamping surface and jaw seat every day to avoid affecting the durability of the equipment; The vibration after the sample is pulled and broken may make the fasteners in the jaw part loosen, which needs to be checked regularly to avoid large losses caused by the loosening of the fasteners;
• The screw and transmission parts should be lubricated regularly to prevent dry friction from damaging the transmission system;
• If self-made test auxiliary tooling is made, the original main structure of the product must not be changed or damaged during installation;
• If there is an abnormal situation during operation, the power supply should be cut off immediately to stop the testing machine.
9. Installation requirements and foundation
• Personnel preparation: Arrange operators who are proficient in using computers, and it is easier for personnel with measurement operator certificates to master them;
• Item preparation: Install a three-phase five-wire air switch on the wall nearest to the oil source of the equipment; HM46 anti-wear hydraulic oil 50 liters;
• Foundation production: The foundation is shown in the figure below. When planning the installation location of the equipment, the convenience of maintenance and inspection should be fully considered; It is recommended that a space of 500-800mm away from obstacles be reserved behind the equipment and on the left and right sides; An operating space of not less than 2000mm must be maintained directly in front of the equipment; When the thickness of the original concrete foundation at the installation position is more than 150mm, rhinestone can be used to drill holes according to the size of the foundation drawing; If the foundation thickness is less than 150mm, please install and construct according to the drawing;
• Equipment in place: The newly built foundation can be used normally after solidification for more than 7 days. After the host machine is in place, place the level on the workbench to adjust the level of the host machine. After leveling, pour the four anchor screw holes with cement mortar. Only after the cement in the anchor screw hole has solidified can the anchor nut be tightened.
