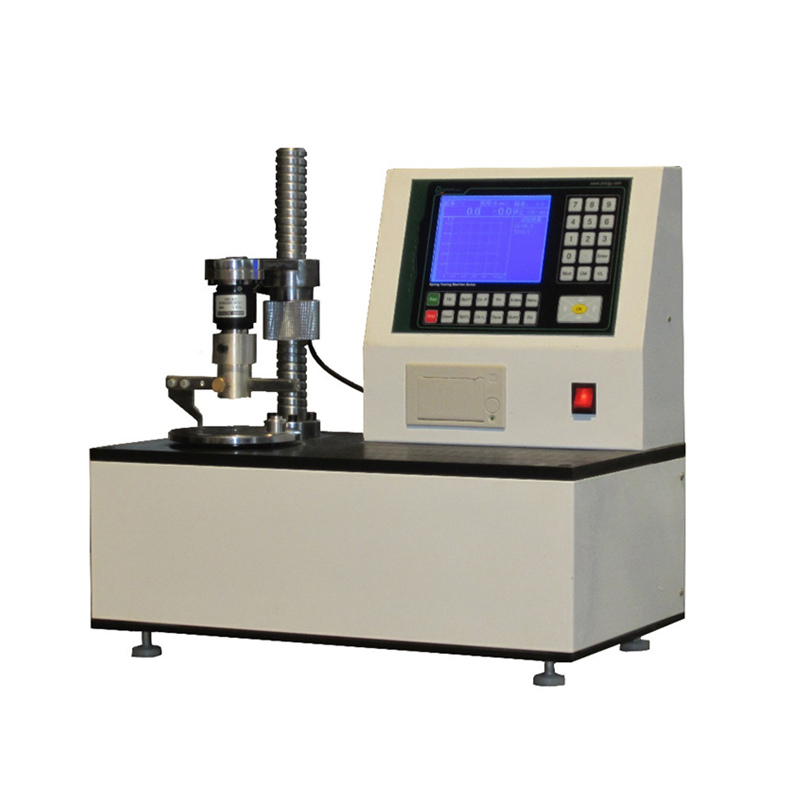

TNS Seris Digital Manual Torsion Spring Tester(0.5N.m-5N.m)

TNS Seris Digital Manual Torsion Spring Tester(0.5N.m-5N.m)

TNS series vertical manual torsion Spring Testing Machine applies to twist spring, spring, elastic elements of rotor rolls and friction of the torsional horn, the test of torsional moment.

Request a Quote

Product Details

Main Application :

TNS series vertical manual torsion Spring Testing Machine applies to twist spring, spring, elastic elements of rotor rolls and friction of the torsional horn, the test of torsional moment. It is the ideal testing equipment of industrial and mining enterprises, the technical supervision, inspection arbitration, scientific research institutes, universities and quality inspection unit and other departments.

Product parameters

Model

KASON-TN50M

KASON-TN100M

KASON-TN200M

KASON-TN500M

KASON-TN1000M

KASON-TN2000M

KASON-TN5000M

Max Test force

(N/mm)

50

100

200

500

1000

2000

5000

Test range

2%-100%

Test machine class

1 class

Test force Min reading value

0.1 Nmm

Angle min reading value

0.1°

Torque indicate relative error

≤ ±1%

Spring test length

0-70mm

Deformation error

≤±（50+0.15l）

Test angle range

0-±9999.9

Torque dish diam

130mm

130mm

Loading method

Manual Loading

Power supply

AC 220V/50Hz
