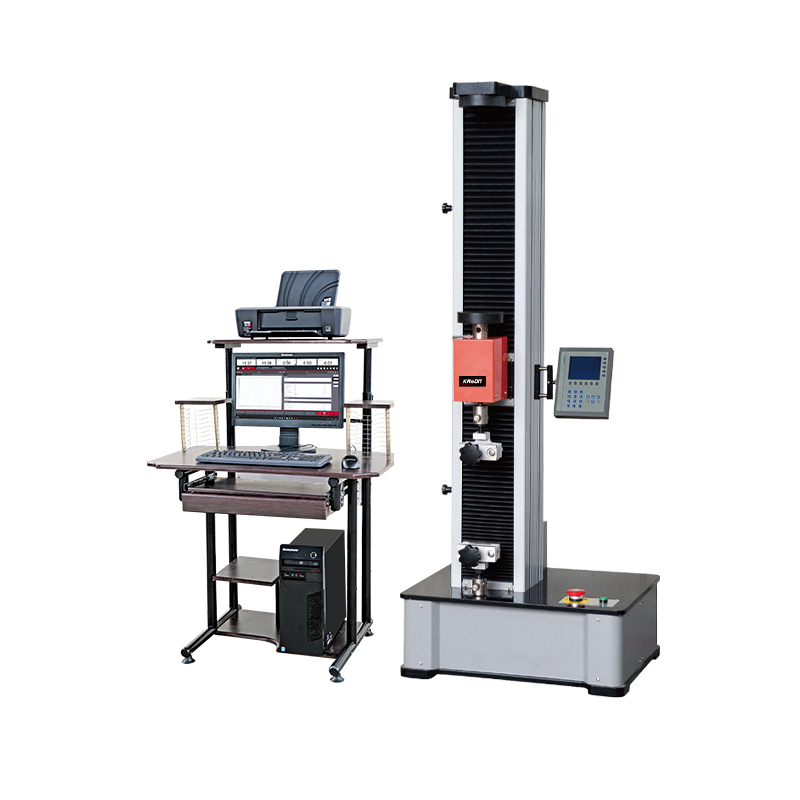

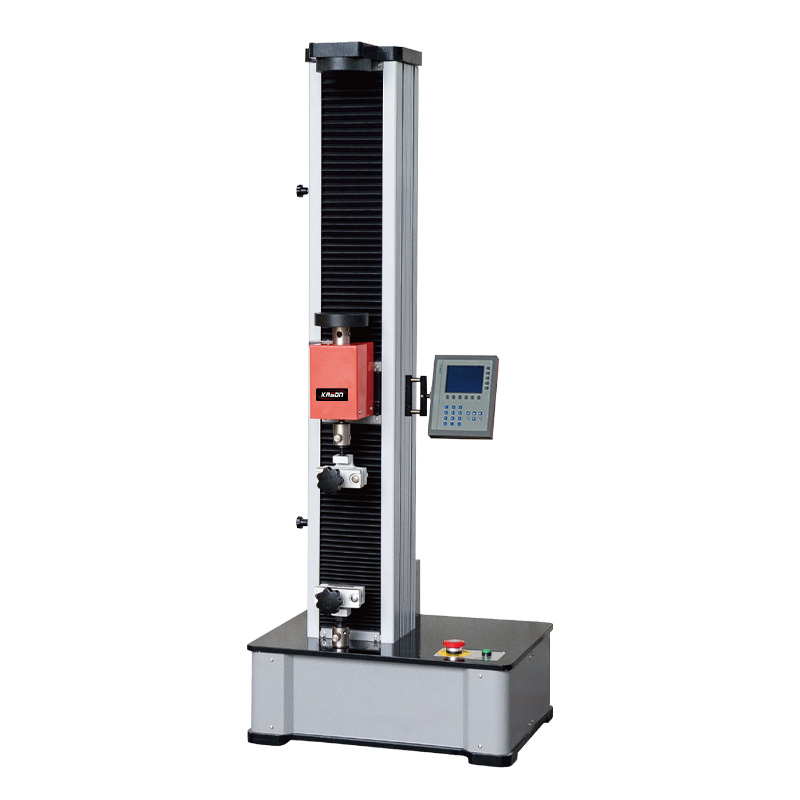

WDS-02E 200N/0.02Ton Touch Screen Display Electronic Universal Testing Machine

Load Capacity

200N/0.02Ton

Calibration standard

Class 0.5 according to ISO 7500-1 - Meets ASTM E-4

Testing Load Accuracy

±0.5%

Testing Load Range

0.4%-100%FS

ETM series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc.

Get a Quote

Learn more

WDS-02E 200N/0.02Ton Touch Screen Display Electronic Universal Testing Machine

WDS-02E 200N/0.02Ton Touch Screen Display Electronic Universal Testing Machine

ETM series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc.

Load Capacity:200N/0.02Ton；

Calibration standard:Class 0.5 according to ISO 7500-1 - Meets ASTM E-4；

Testing Load Accuracy:±0.5%；

Testing Load Range:0.4%-100%FS；

Load Resolution:1/500,000FS；

Get a Quote

Product Details

ETM series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components.

Product parameters

Load Capacity 200N/0.02Ton	Calibration standard Class 0.5 according to ISO 7500-1 - Meets ASTM E-4	Testing Load Accuracy ±0.5%
Testing Load Range 0.4%-100%FS	Load Resolution 1/500,000FS	Deformation measuring range 0.2%—100%FS
Deformation accuracy ≤±0.5%	Testing space (Crosshead Travel) 1000mm	Max. Tensile Testing Space(Include standard fixture) 600mm/ 800mm (height model)
Max. Compression Testing Space 600mm/ 800mm (height model)	Overall Dimensions 5204001340mm	Weight 110kg
Power supply AC220V±10%, 50Hz/60Hz	Crosshead speed range 0.001-500mm/min
