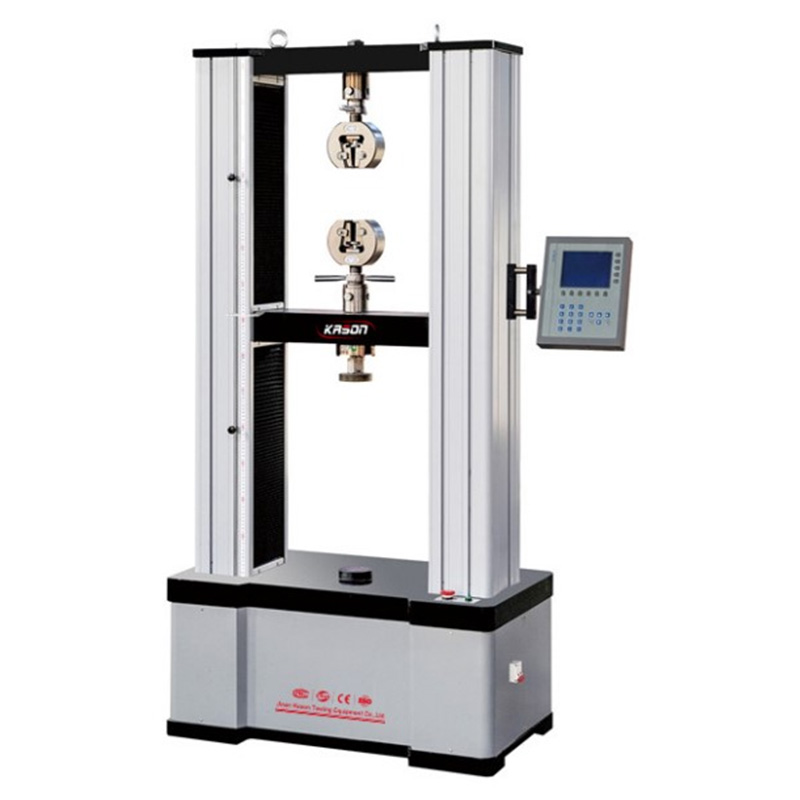

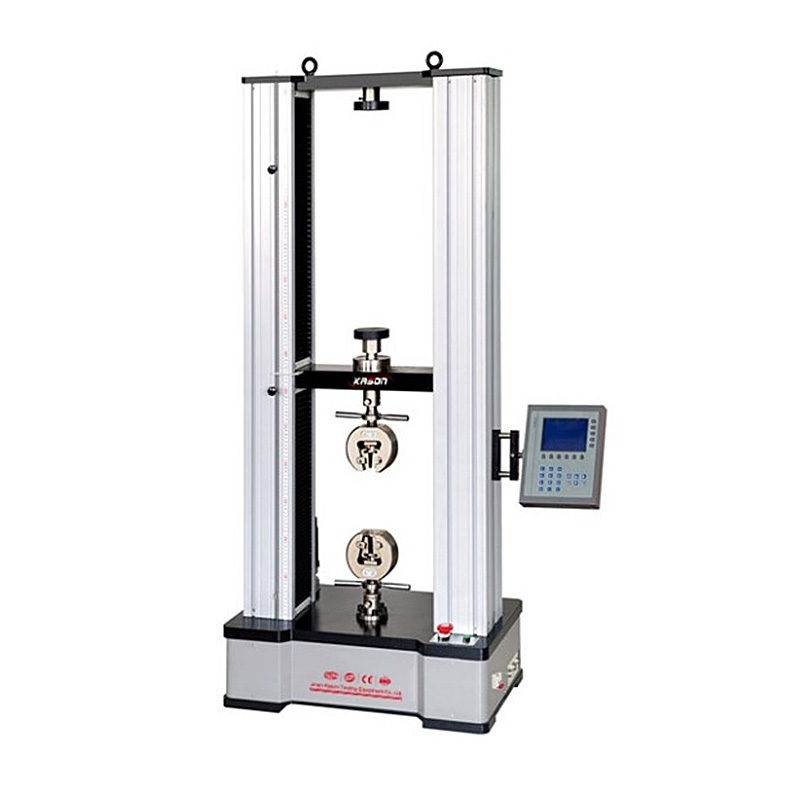

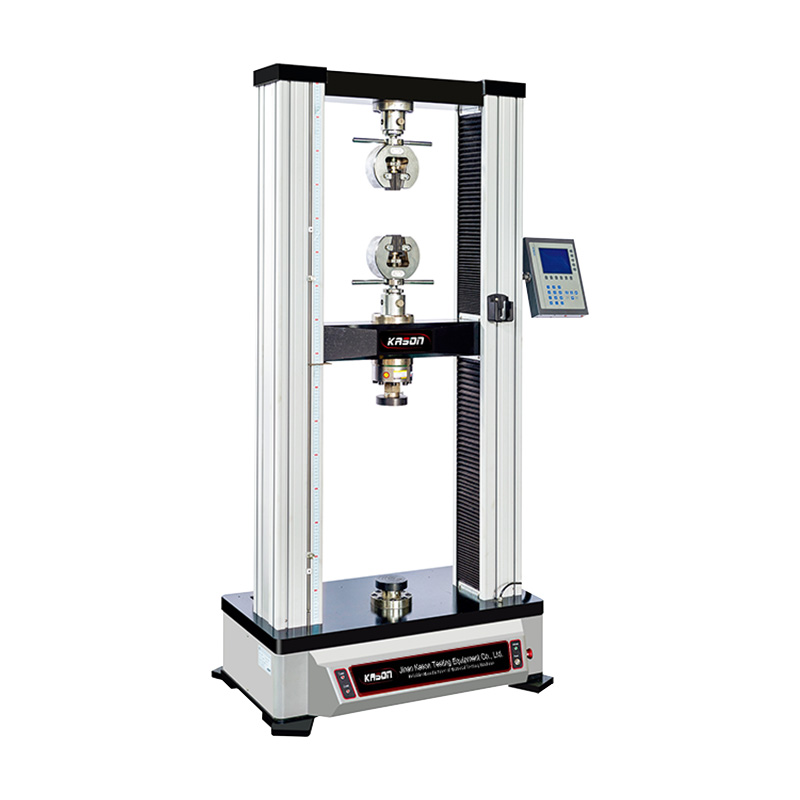

WDS-500E 500KN/50Ton Touch screen display electronic universal testing machine
-
Load Capacity
500KN/50Ton
-
Calibration standard
Class 0.5 according to ISO 7500-1 - Meets ASTM E-4
-
Testing Load Accuracy
±0.5%
-
Testing Load Range
0.4%-100%FS
ETM series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc.
WDS-500E 500KN/50Ton Touch screen display electronic universal testing machine
ETM series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc.
-
Load Capacity:500KN/50Ton；
-
Calibration standard:Class 0.5 according to ISO 7500-1 - Meets ASTM E-4；
-
Testing Load Accuracy:±0.5%；
-
Testing Load Range:0.4%-100%FS；
-
Load Resolution:1/500,000FS；
Product Details
ETM series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components.
Product parameters
|
Load Capacity 500KN/50Ton |
Calibration standard Class 0.5 according to ISO 7500-1 - Meets ASTM E-4 |
Testing Load Accuracy ±0.5% |
|
Testing Load Range 0.4%-100%FS |
Load Resolution 1/500,000FS |
Deformation measuring range 0.2%—100%FS |
|
Deformation accuracy ≤±0.5% |
Testing space (Crosshead Travel) 900mm |
Max. Tensile Testing Space(Include standard fixture) 800mm |
|
Max. Compression Testing Space 700mm |
Overall Dimensions 1880x1215x3090mm |
Weight 4000kg |
|
Power supply 5.5KW, AC380V±10%, 50Hz/60Hz |
Crosshead speed range 0.001-500mm/min |
