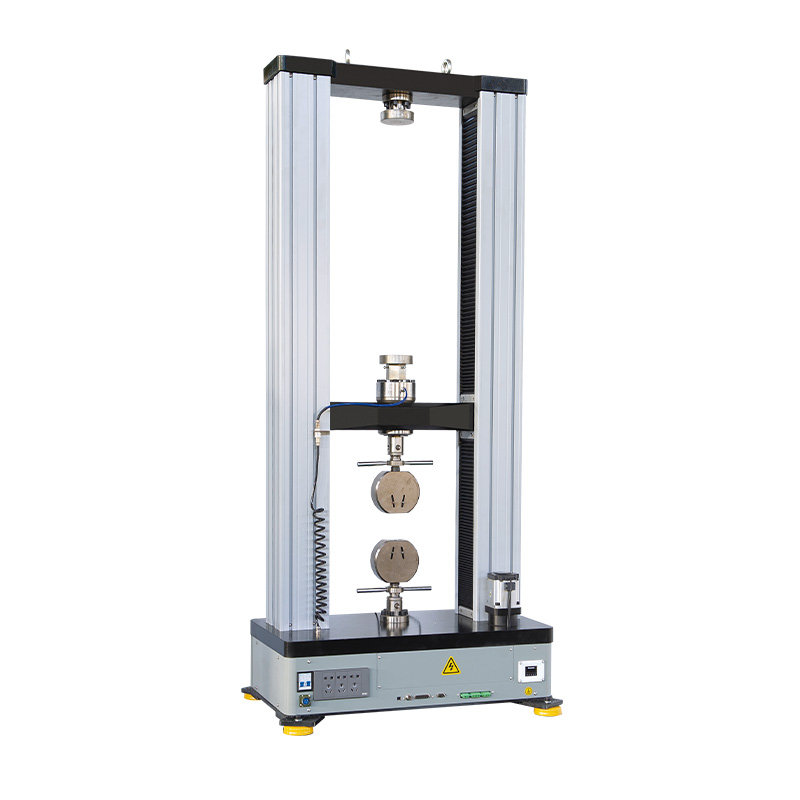

WDS-50E 50KN/5Ton Touch screen display electronic universal testing machine

Load Capacity

50KN/5Ton

Calibration standard

Class 0.5 according to ISO 7500-1 - Meets ASTM E-4

Testing Load Accuracy

±0.5%

Testing Load Range

0.4%-100%FS

ETM series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc.

Get a Quote

Learn more

WDS-50E 50KN/5Ton Touch screen display electronic universal testing machine

WDS-50E 50KN/5Ton Touch screen display electronic universal testing machine

ETM series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc.

Load Capacity:50KN/5Ton；

Calibration standard:Class 0.5 according to ISO 7500-1 - Meets ASTM E-4；

Testing Load Accuracy:±0.5%；

Testing Load Range:0.4%-100%FS；

Load Resolution:1/500,000FS；

Get a Quote

Product Details

ETM series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components.

Product parameters

Load Capacity 50KN/5Ton	Calibration standard Class 0.5 according to ISO 7500-1 - Meets ASTM E-4	Testing Load Accuracy ±0.5%
Testing Load Range 0.4%-100%FS	Load Resolution 1/500,000FS	Deformation measuring range 0.2%—100%FS
Deformation accuracy ≤±0.5%	Testing space (Crosshead Travel) 1100mm	Max. Tensile Testing Space(Include standard fixture) 770mm
Max. Compression Testing Space 770mm	Overall Dimensions 850x585x1824mm	Weight 420kg
Power supply 0.75KW, AC220V±10%, 50Hz/60Hz	Crosshead speed range 0.001-1000mm/min
