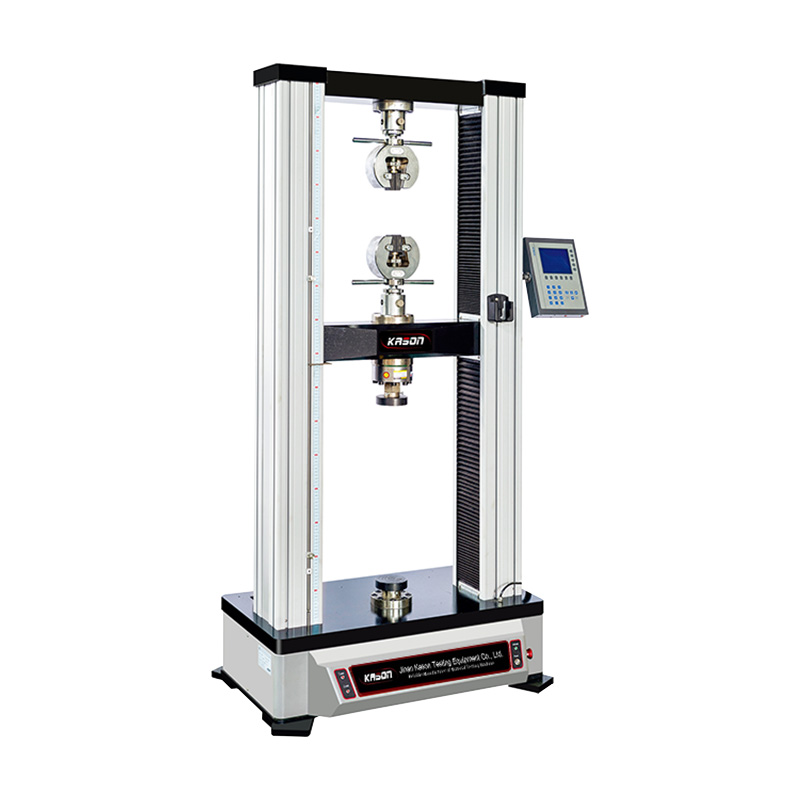

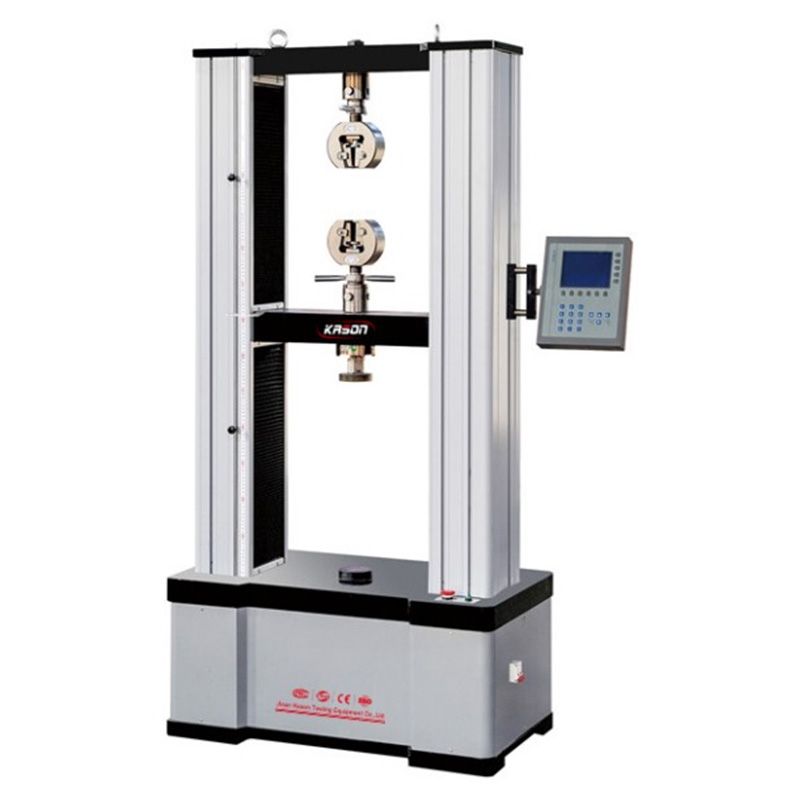

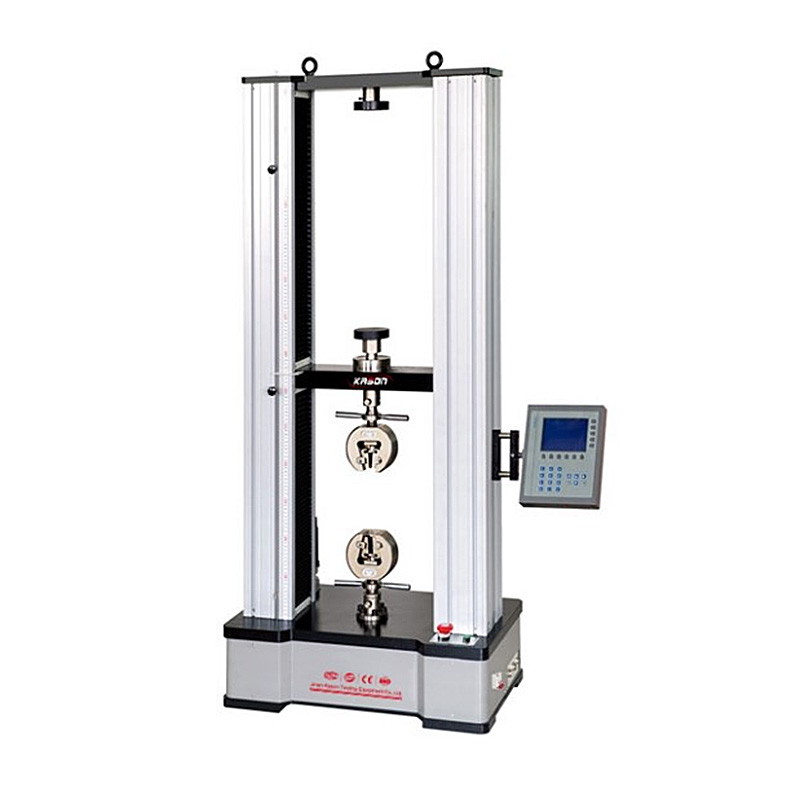

WDS-30E 30KN/3Ton Touch screen display electronic universal testing machine

Load Capacity:30KN/3Ton；

Calibration standard:Class 0.5 according to ISO 7500-1 - Meets ASTM E-4；

Testing Load Accuracy:±0.5%；

Testing Load Range:0.4%-100%FS；

Load Resolution:1/500,000FS；

Get a Quote

Product Details

The digital display electronic universal testing machine has the characteristics of compact structure, simple and easy to use, and can be used in tensile, compression, bending, shearing, stripping, tearing and other force testing of materials. The cross beam of the main engine is guided by a high-precision guide bar, which has high rigidity and good linear motion characteristics. A wealth of fixture tooling, load force sensors, deformation measuring sensors and other accessories, can meet almost all customer needs. Test solutions cover plastics, metals, the automotive industry, building materials, textiles, paper and board, food and packaging, composites and more.

Product parameters

Load Capacity 30KN/3Ton	Calibration standard Class 0.5 according to ISO 7500-1 - Meets ASTM E-4	Testing Load Accuracy ±0.5%
Testing Load Range 0.4%-100%FS	Load Resolution 1/500,000FS	Deformation measuring range 0.2%—100%FS
Deformation accuracy ≤±0.5%	Testing space (Crosshead Travel) 1100mm	Max. Tensile Testing Space(Include standard fixture) 770mm
Max. Compression Testing Space 1000mm	Overall Dimensions 850x590x1850mm	Weight 370kg
Power supply 1KW, AC220V, 50Hz/60Hz	Crosshead speed range 0.001-1000mm/min
